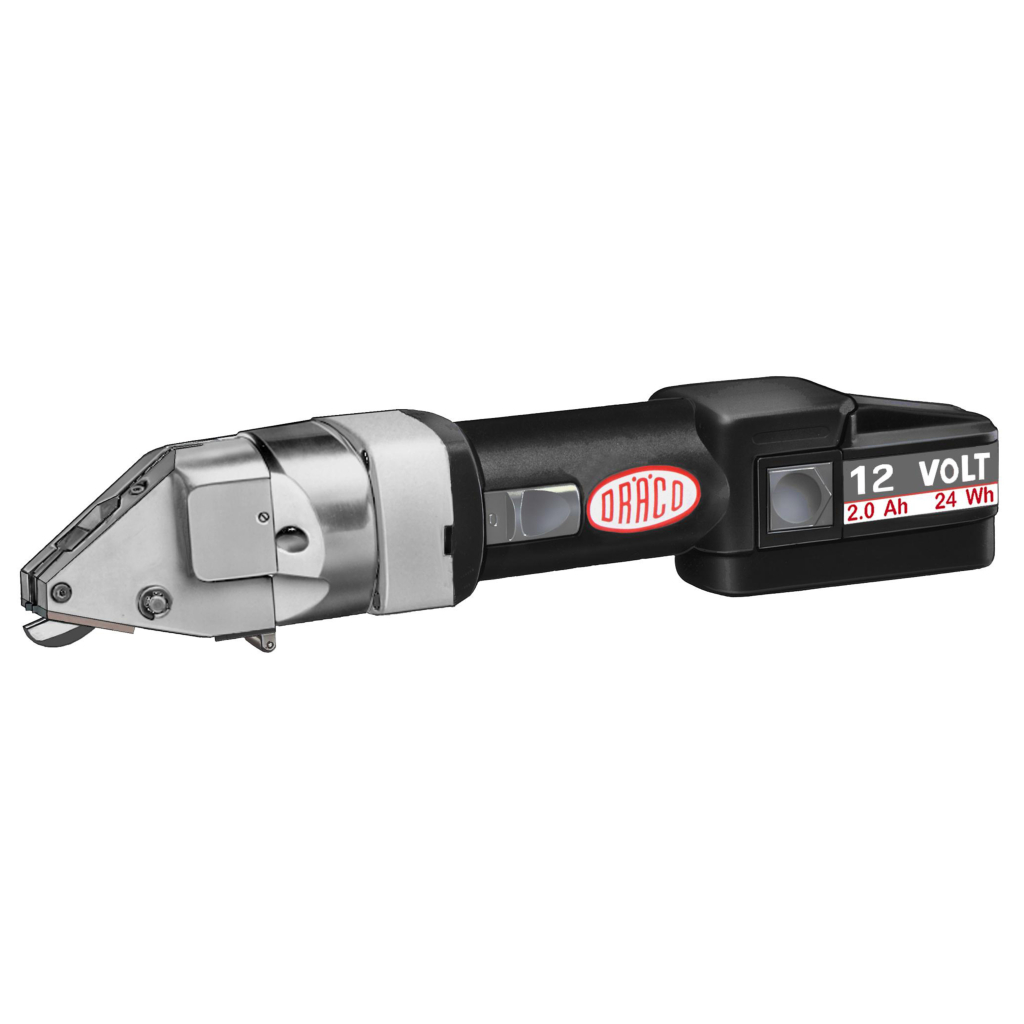

AK3514-2 Cordless Shear

Draco
(Code: Draco-351423)
Up to 2.0mm, or 4 x 0.9mm steel, or 6 x 0.75mm light metal

Includes 2 batteries. charger and case. Ideal for cutting spiral ducts, standing seams and cross welts.
£738.00
5000
  1. Up to 2.0mm, or 4 x 0.9mm steel, or 6 x 0.75mm light metal

    • Cold cutting without flying sparks!

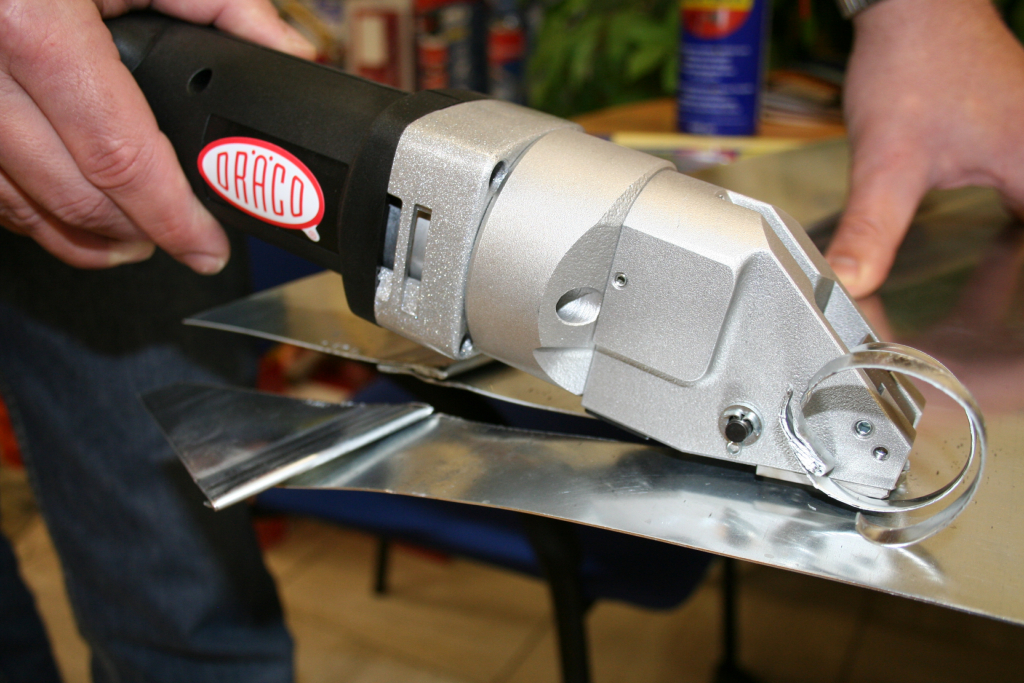

    • Ideal for cutting spiral ducts, roof rebate, transverse rebate, ridge rebate and fillet made of sheet metal, aluminum, lead, copper, zinc or stainless steel.
    • Also ideal for roller shutter boxes, cover caps, grids and wire in cage and aviary construction (flush-edged!).

    Additional Applications
    • Shutter construction
    • Awning construction
    • House construction
    • Cages

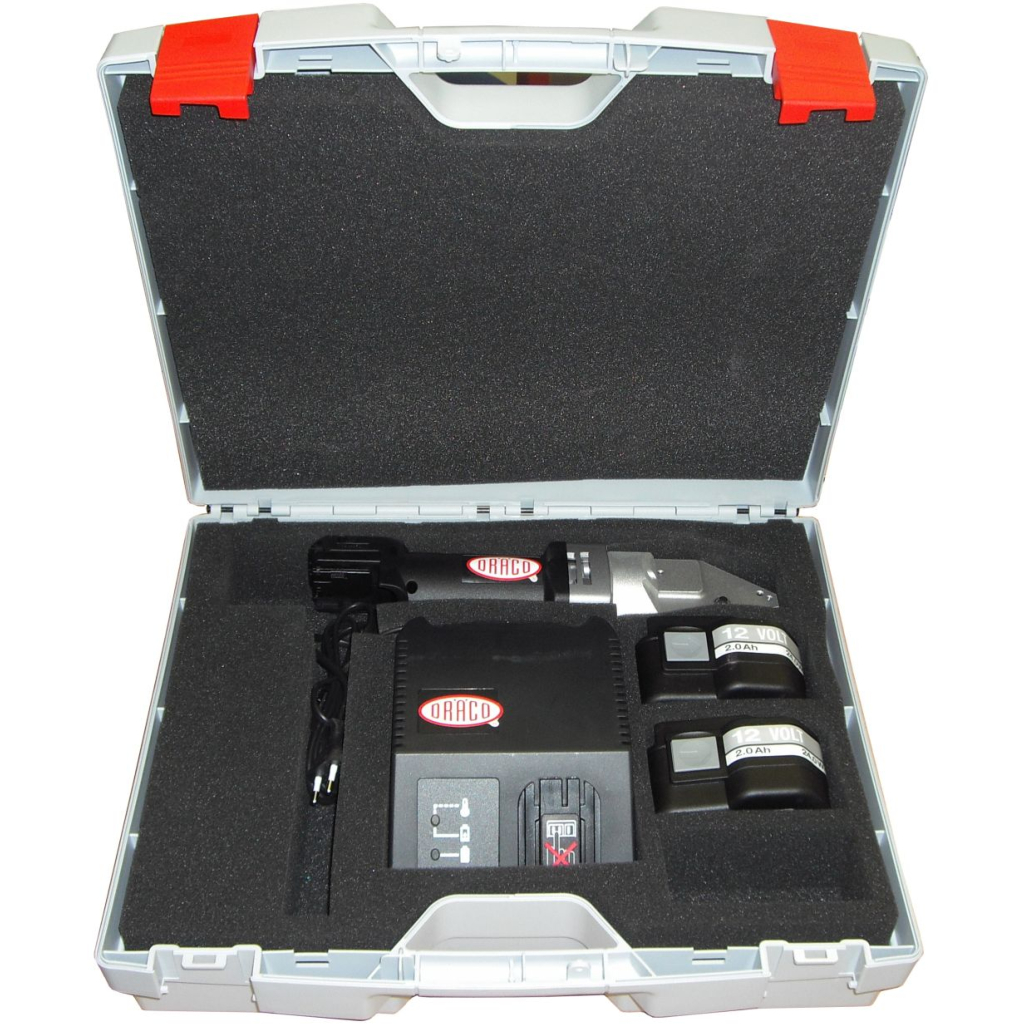

    5-piece AK 3514-2 cordless shear set consists of:
    • 1 x AK 3514-2 cordless shear
    • 2 x batteries MXL12
    • 1 x charger
    • 1 x case
    • Steel (400N/mm²) capacity: 2mm
    • Stainless steel (600N/mm²) capacity: 1.3mm
    • Stainless steel (800N/mm²) capacity: 1mm
    • Aluminium (250N/mm²) capacity: 2.5mm
    • Seams (400N/mm²): 4 x 0.75mm
    • Falze (250N/mm²): 6 x 0.75mm
    • Lead capacity: 4mm
    • Tightest radius: 200mm
    • Working speed: 4m per min
    • Strokes: 1800 per min
    • Charger voltage: 230V
    • Weight of complete set: 5.2kg
