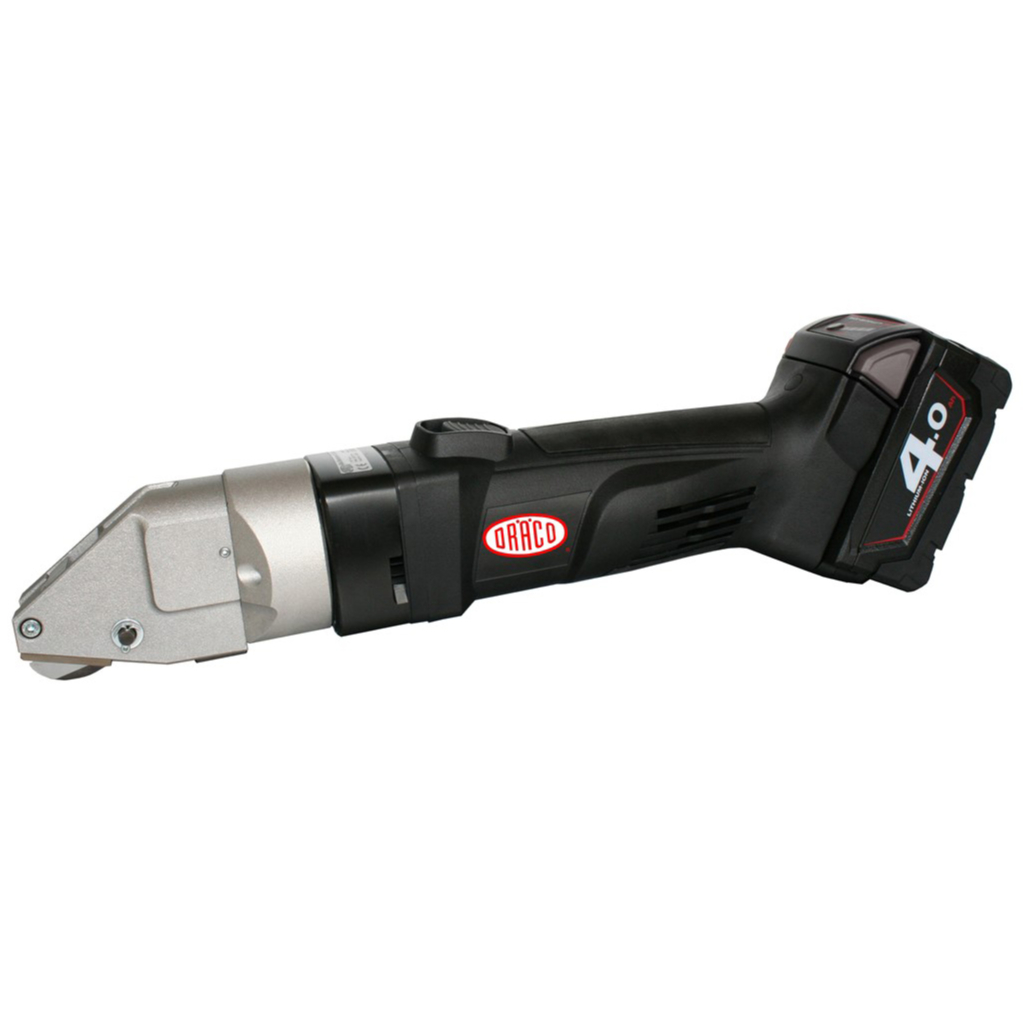

AK3514-7R Li-Ion Cordless Radius Shear

(Code: Draco-630803)
Up to 2.0mm, or 4 x 0.75mm steel

Includes 2 Li-Ion batteries, charger and case. Ideal for cutting recesses in spiral ducts and sheets of all kinds. Cuts straight and tight radii in sheets and even over seams.
£916.00
5400
  1. Up to 2.0mm, or 4 x 0.75mm steel

    Cold cutting without flying sparks! Ideal for cutting recesses in spiral ducts and sheets of all kinds. Cuts straight and tight radii in sheets and even over seams.

    Ideal for air and climate technology, installation companies, truck workshops, metalworking companies etc.

    Round holes in (spiro) tubes, connections in (spiro) tubes, splitting of(spiro) tubes, aluminum tear sheet processing.

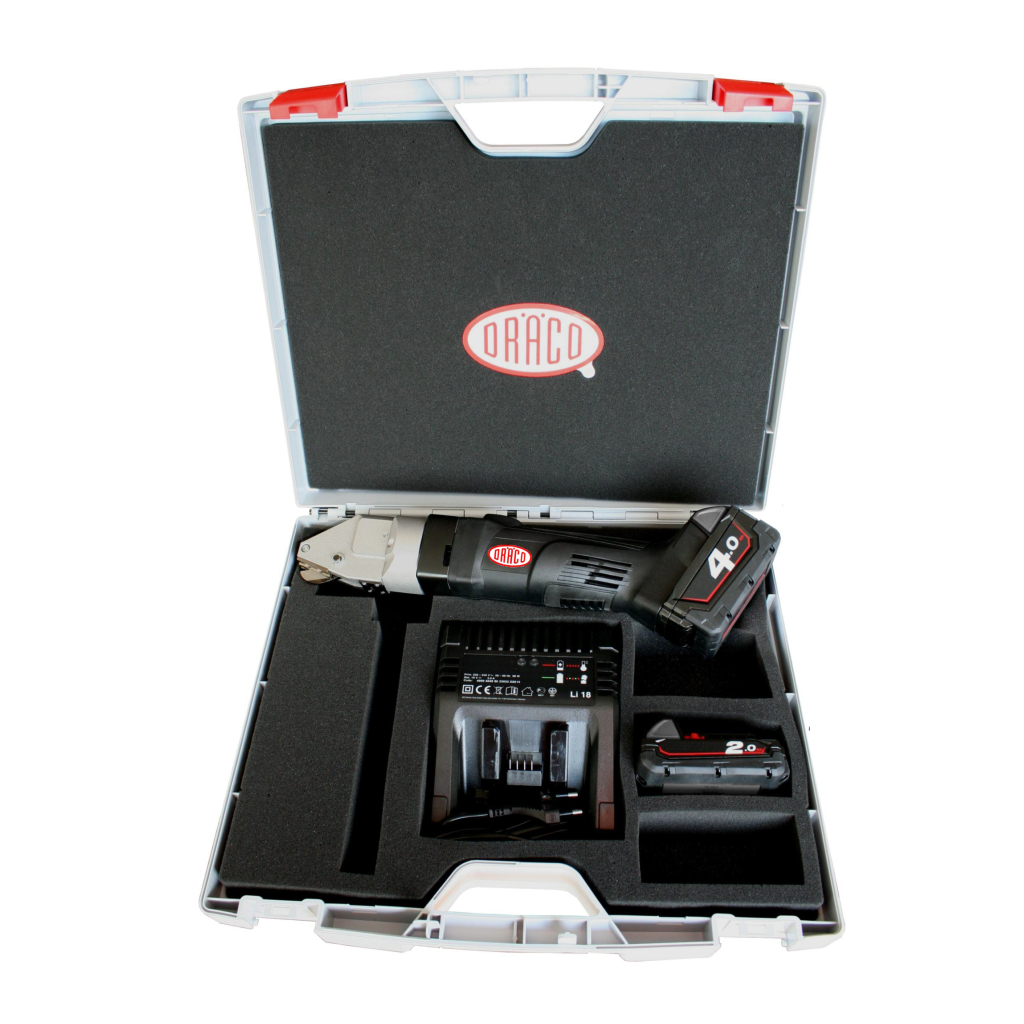

    The AK 3514-7R Li-Ion cordless radius shear set consists of:
    1 x cordless radius shear AK 3514-7R

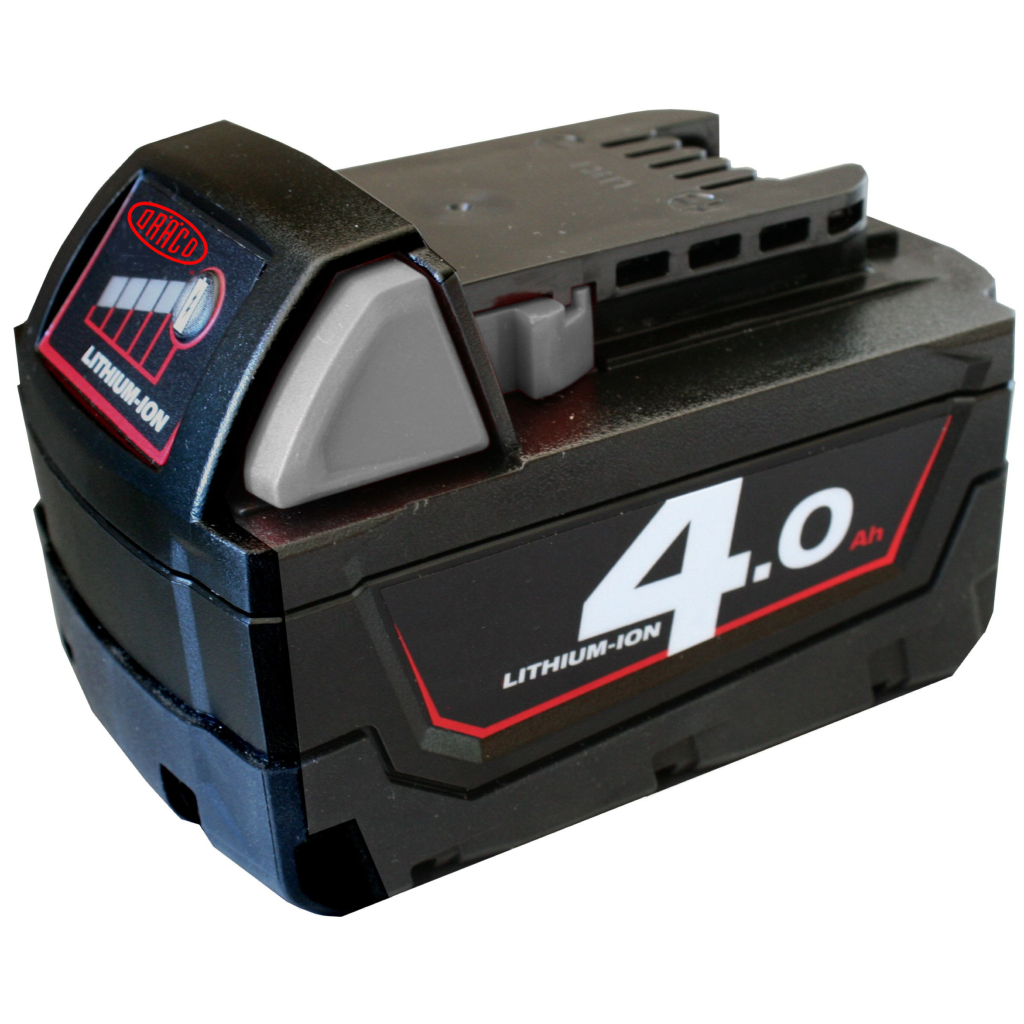

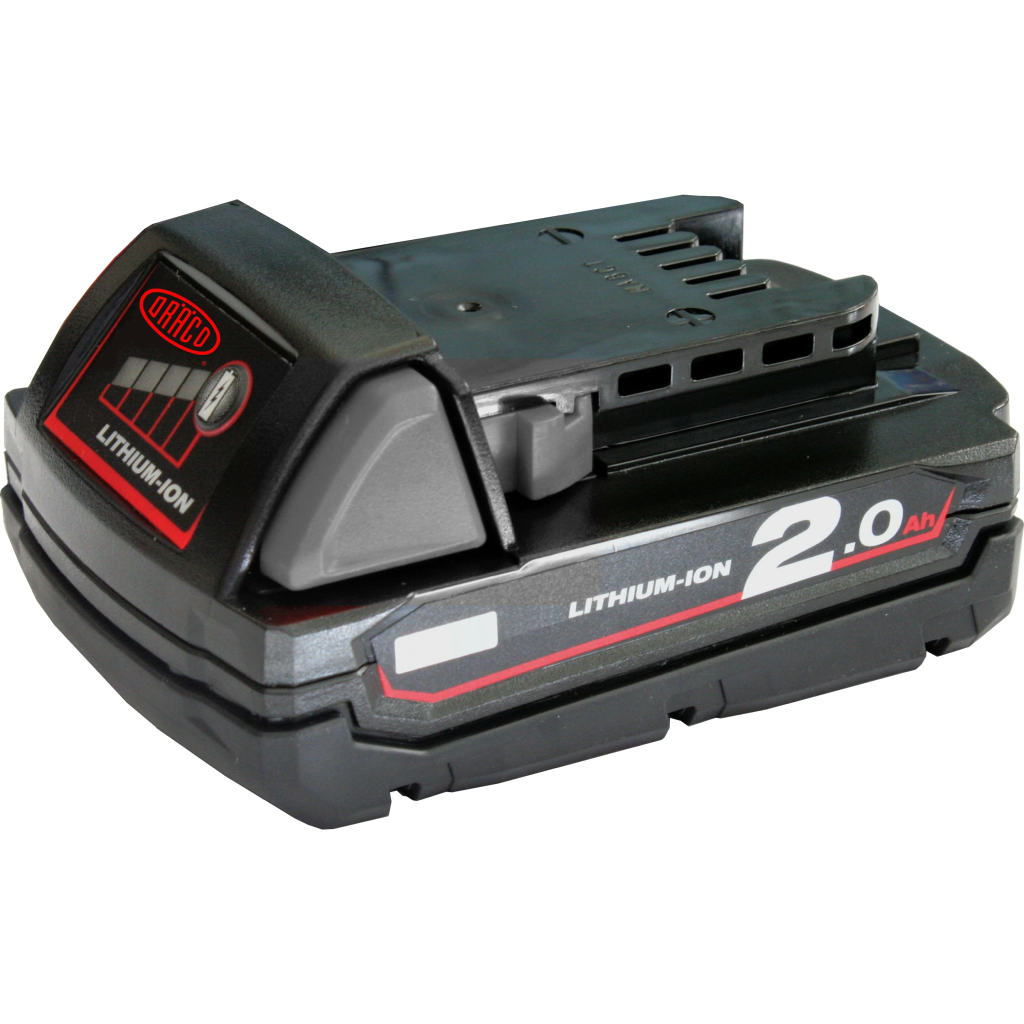

    2 x Li-Ion batteries (2.0 + 4.0 Ah)
    1 x charger
    1 x case

  2. Steel (400N/mm²) capacity: 2mm
    Stainless steel (600N/mm²) capacity: 1.5mm
    Stainless steel (800N/mm²) capacity: 1.3mm
    Aluminium (250N/mm²) capacity: 3mm
    Lead capacity: 4mm
    Seams (400N/mm²): 4 x 0.75mm
    Falze (250N/mm²): 4 x 0.9mm
    Tightest radius: 45mm
    Working speed: 6m per min
    Strokes: 1800 per min
    Charger voltage: 230V
    Weight of shear inc. battery: 2.4kg
    Weight of complete set: 5.4kg
