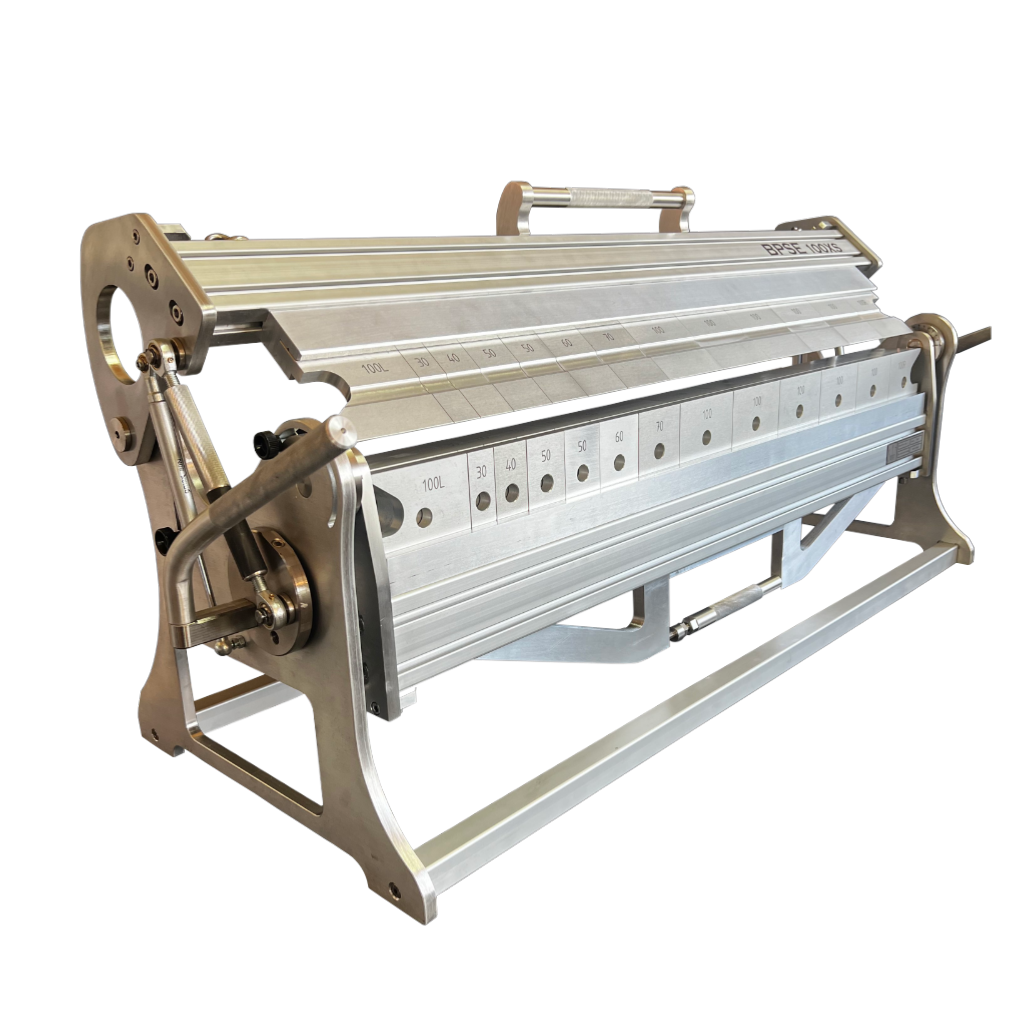

Biro Profil Segmented Bending Machine BPSE-100XS

Biro Profil Segmented Bending Machine BPSE-100XS

Biro Profil
(Code: BIRO-BPSE-100XS)
Available to Order
Small and compact, this segmented sheet-metal bending machine is made from high quality materials. 90% hard alloyed aluminium parts make the machine as light as possible allowing it to be carried easily, even on a roof or scaffolding.
39000
  1. Small and compact, this segmented sheet-metal bending machine is made from high quality materials. 90% hard alloyed aluminium parts make the machine as light as possible allowing it to be carried easily, even on a roof or scaffolding.

    • Back support with adjustable height
    • Degree stop
    • Shoulder belt
    • Bending arm fixing
    • Clamping arm fixing
    • Clamping force adjustment
    • Plate thickness adjustment
    • Adjustable fixing points
    • Easy transportation
    • On-site quick mounting
    • Self-supporting structure

    Coming Soon - Pre-Order Available

    • Weight: 39kgs
    • Segments weight with box: 13.7kgs
    • Measurements: 1255x530x450mm
    • Upper beams height: 45mm
    • Lower beams height: 60mm
    • Opening height max.: 108mm
    • Max bending degree: 135°
    • Bending capacity: Steel: 0.6mm, Copper, Zink: 0.7mm, Aluminium: 0.8mm, Stainless steel: 0.5mm
    • Minimum bending width: 8mm
    • Segment beads lengths (mm): 1x 100R, 1x 100L, 5x 100, 2x 50, 1x 70, 1x60, 1x40 1x30
    • Gas springs supported movements
