Box and Pan Mini-Brake
Box and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-BrakeBox and Pan Mini-Brake

Box and Pan Mini-Brake

(Code: Malco-MB48B)
For fabricating box, pan and complex corners for flashing & fascia.
£ 964.00
44900
Add to cart

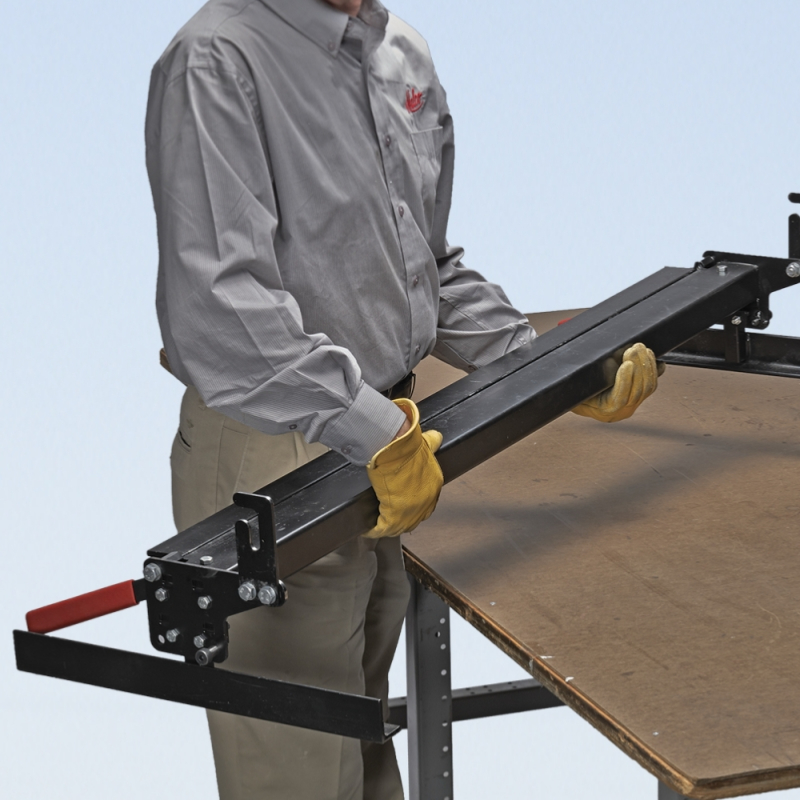

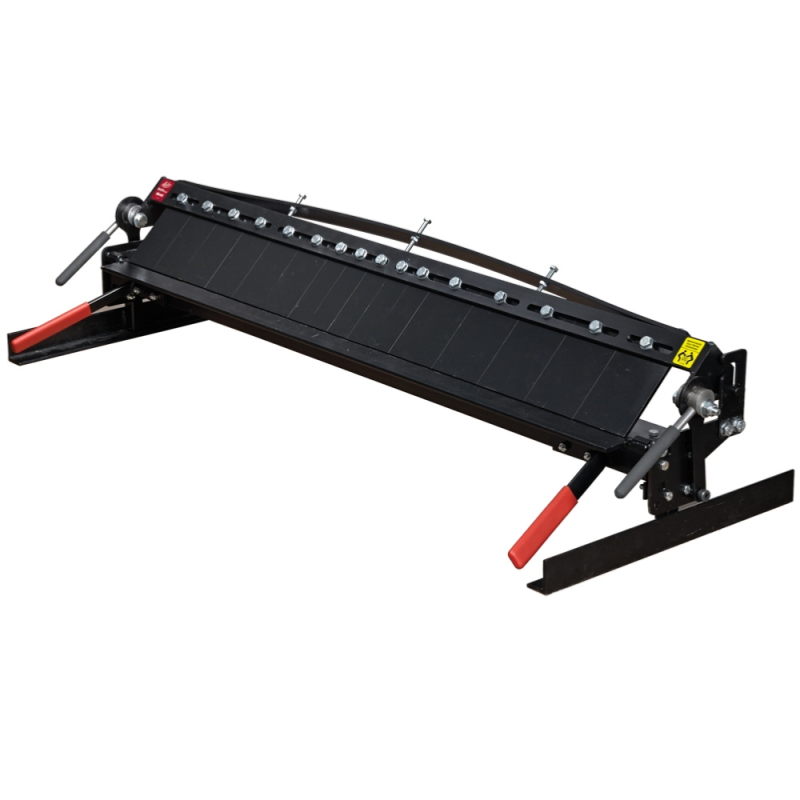

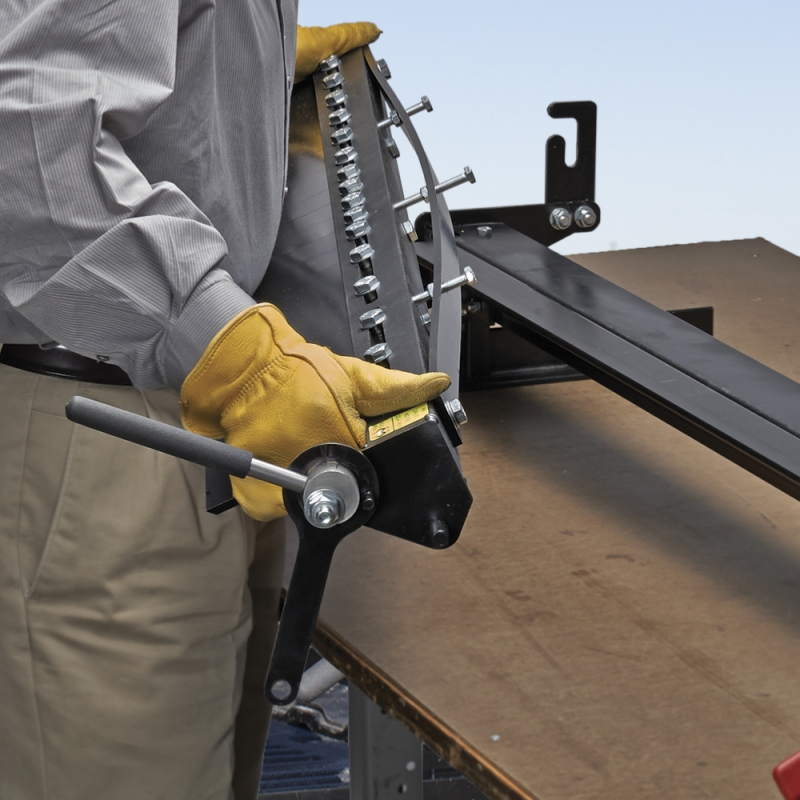

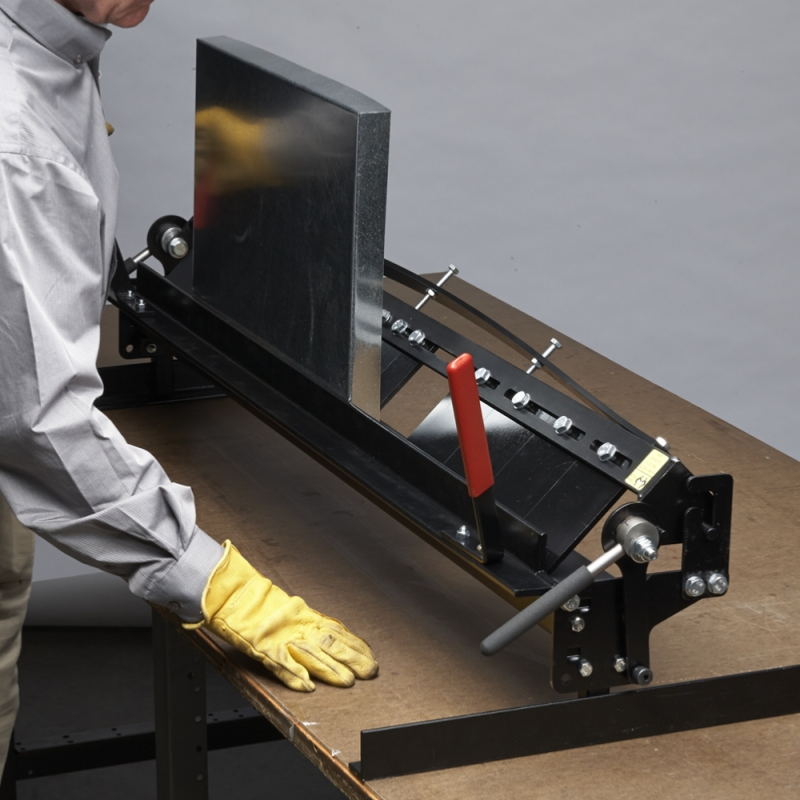

  1. The MB48B Mini-Brake is designed to fabricate box & pan, as well as complex corners for flashing and fascia, on the job. At just under 45kg, it is carried comfortably by two people, or quickly separated into folder and table components for one-person transport.

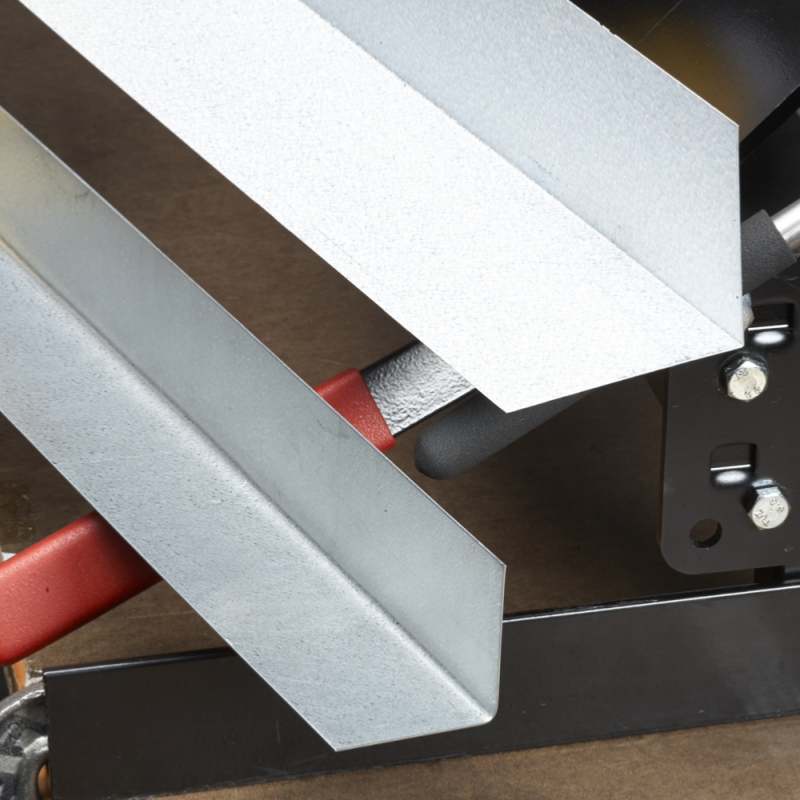

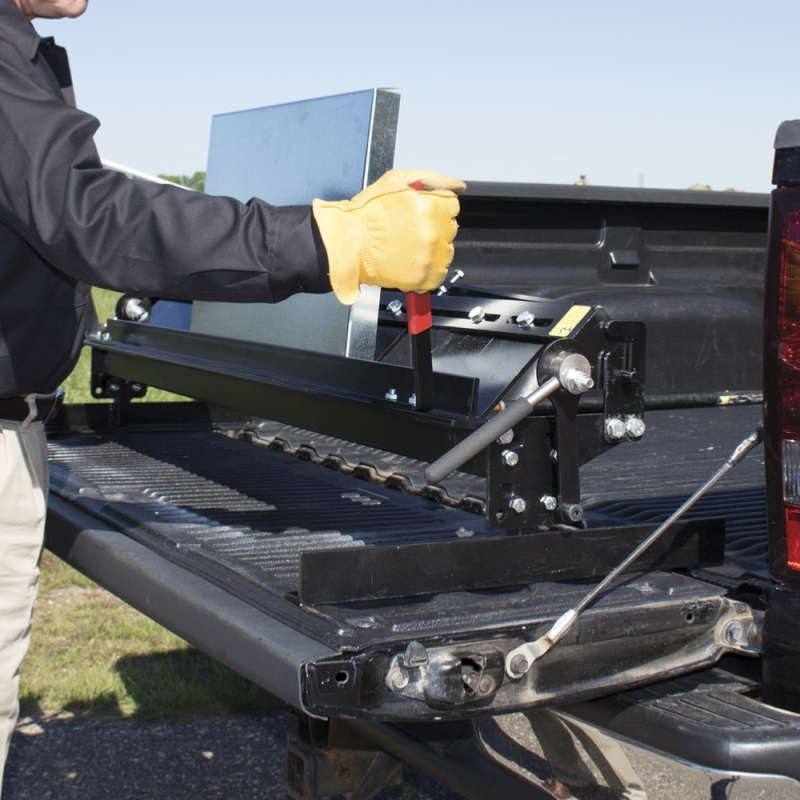

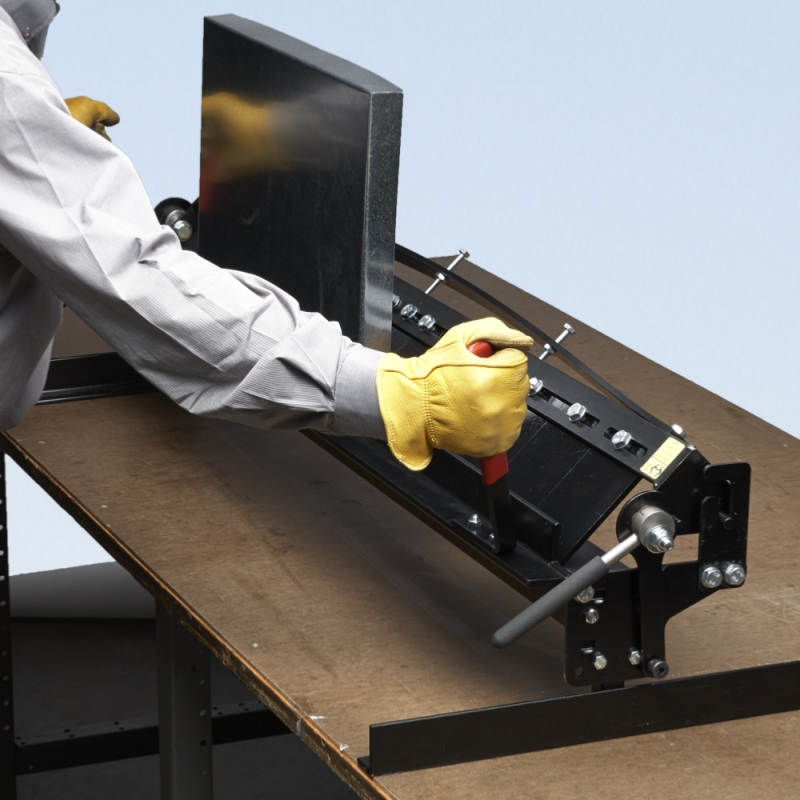

    The MB48B operates on a workbench, tailgate, or optional legs to produce 135° bends in 0.86mm galvanised steel at a maximum 1.2m width. An 8mm plate-steel table apron and anvil frame, with adjustable set-back and strengthening ribs, ensures a uniform bend. Cam-over-centre clamps keep the anvil secure in any position for safe operation.

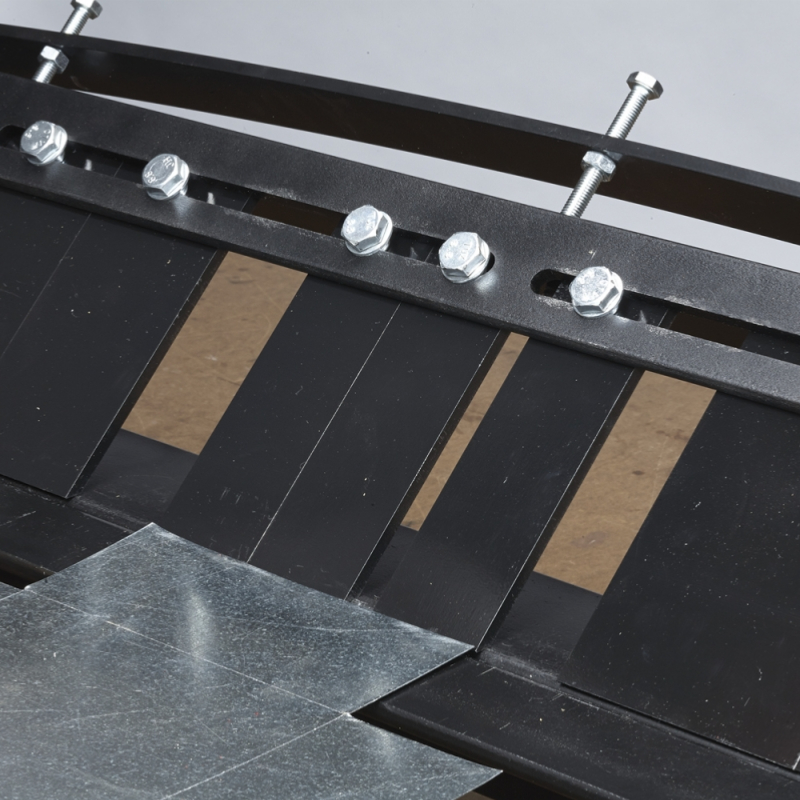

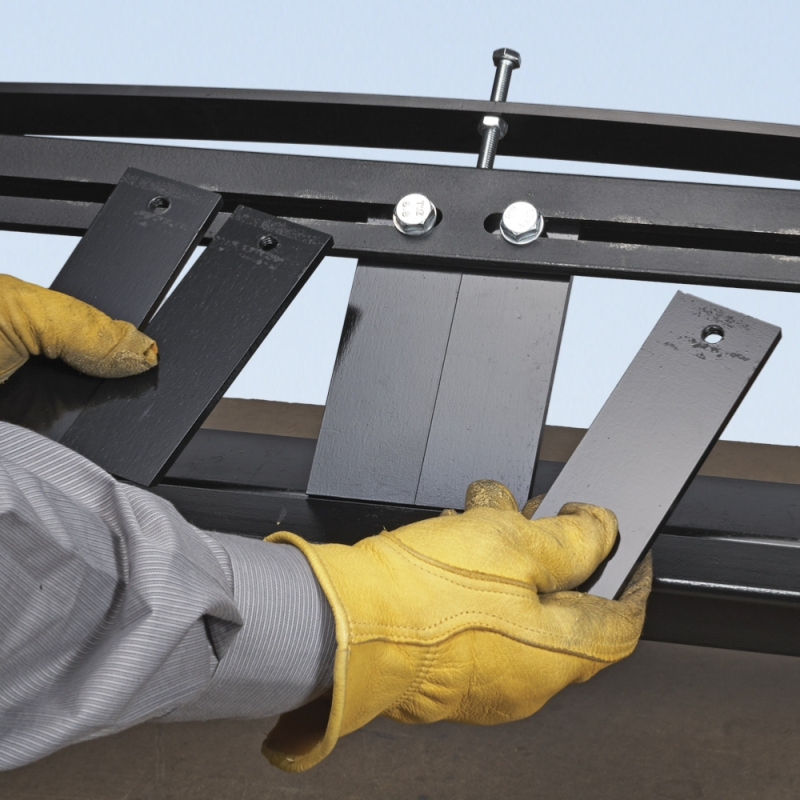

    For making pans and boxes, the full anvil is comprised of 16 movable, plate-steel fingers: Five 51mm; Six 76mm; and Five 102mm fingers to create a maximum 1.2m bending width. Minimum bending width is limited to the 51mm finger width. Anvil clearance allows a range of flange-height dimensions from 13mm - 76mm. No fixed throat depth also makes the MB48B ideal for fabricating large ductwork, flashing and fascia components on the job.

    Features
    • For on-the-job pans, angled corners, or large components.
    • Fast, easy assembly
    • One-person Portability
    • Works on bench, tailgate or leg kit
    • 135° bends in 22-gauge (0.86 mm) galvanized
    • Bend Angle: 0-135°
    • Max Folding Length: 1.2m
    • Max Pan Height: 76mm
    • Min Pan Height: 13mm
    • Capacity: 0.86mm Galv Steel
    • Net Weight: 44.9kg
