Dimos Dipro 3X
Dimos Dipro 3XDimos Dipro 3XDimos Dipro 3XDimos Dipro 3XDimos Dipro 3X

Dimos Dipro 3X

(Code: Dimos-086400)

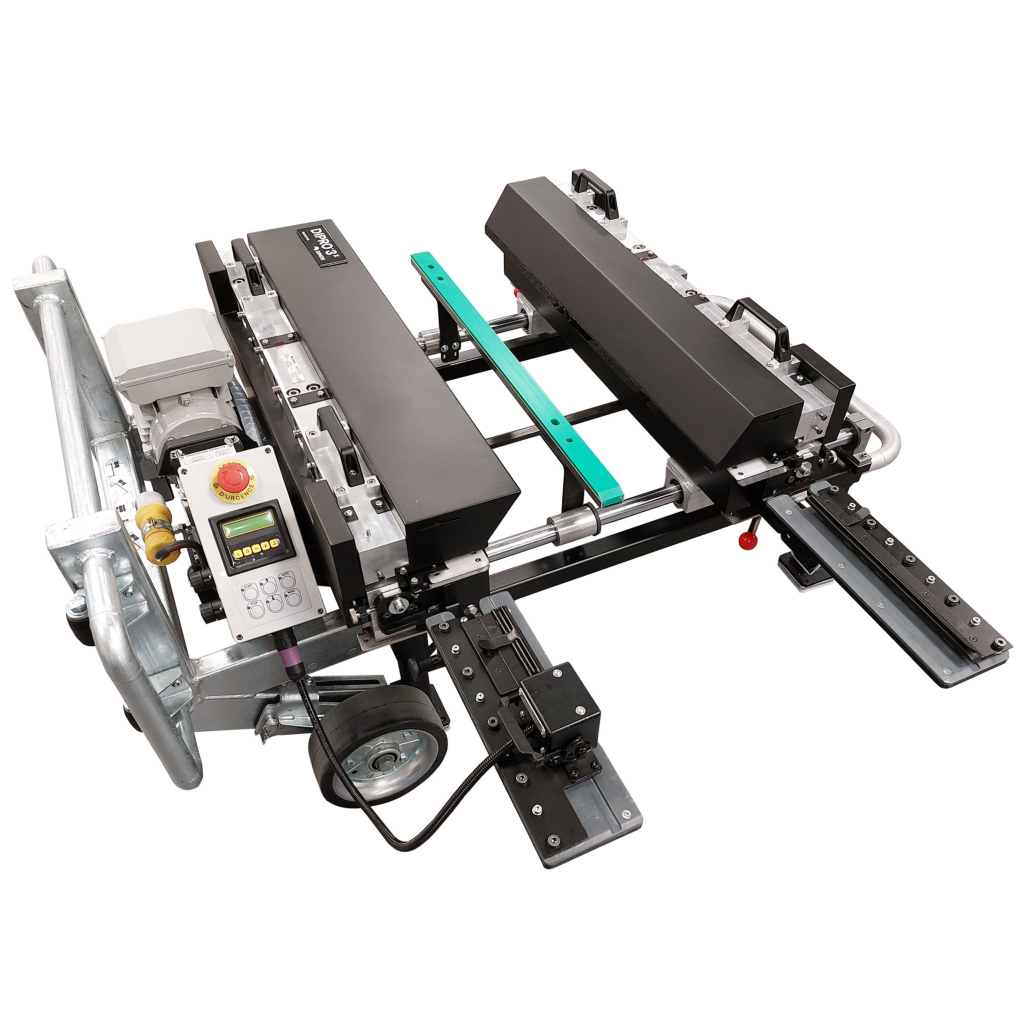

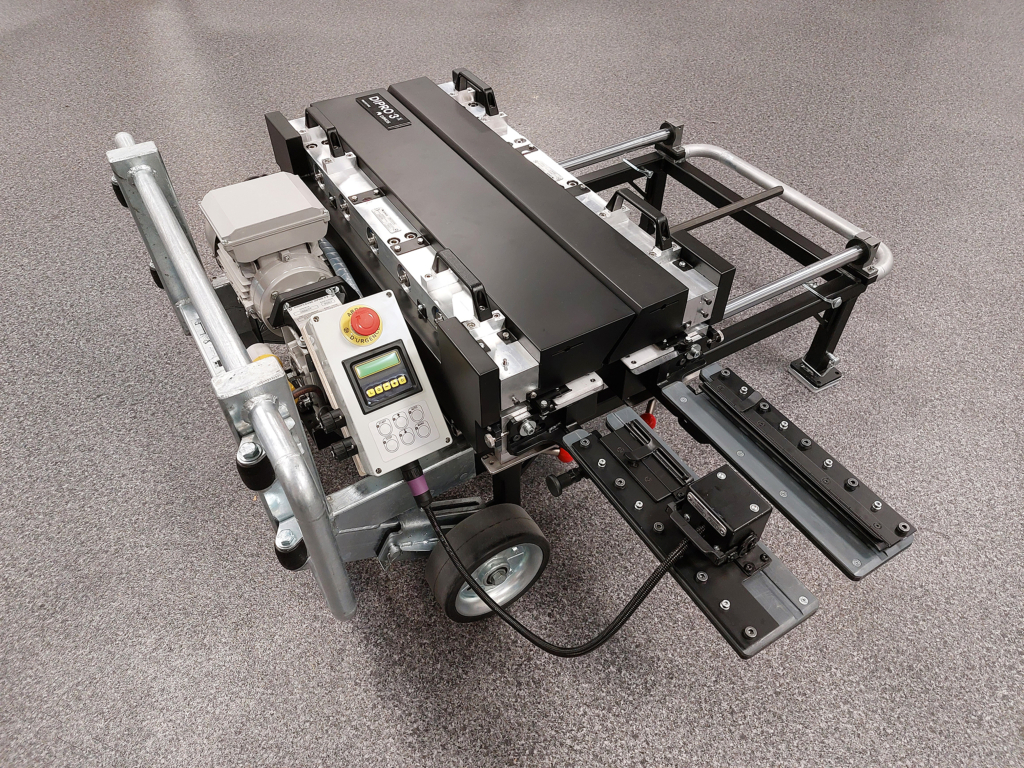

The modular profiling machine that opens a field of possibilities.
£ 12,980.00
201000
Add to cart
  1. Key Features
    • Modularity and compact design
    • Intuitive handling
    • Mobility on site

    Advantages
    • Modular (profiling trains, motor and frame all removable) and easy to transport

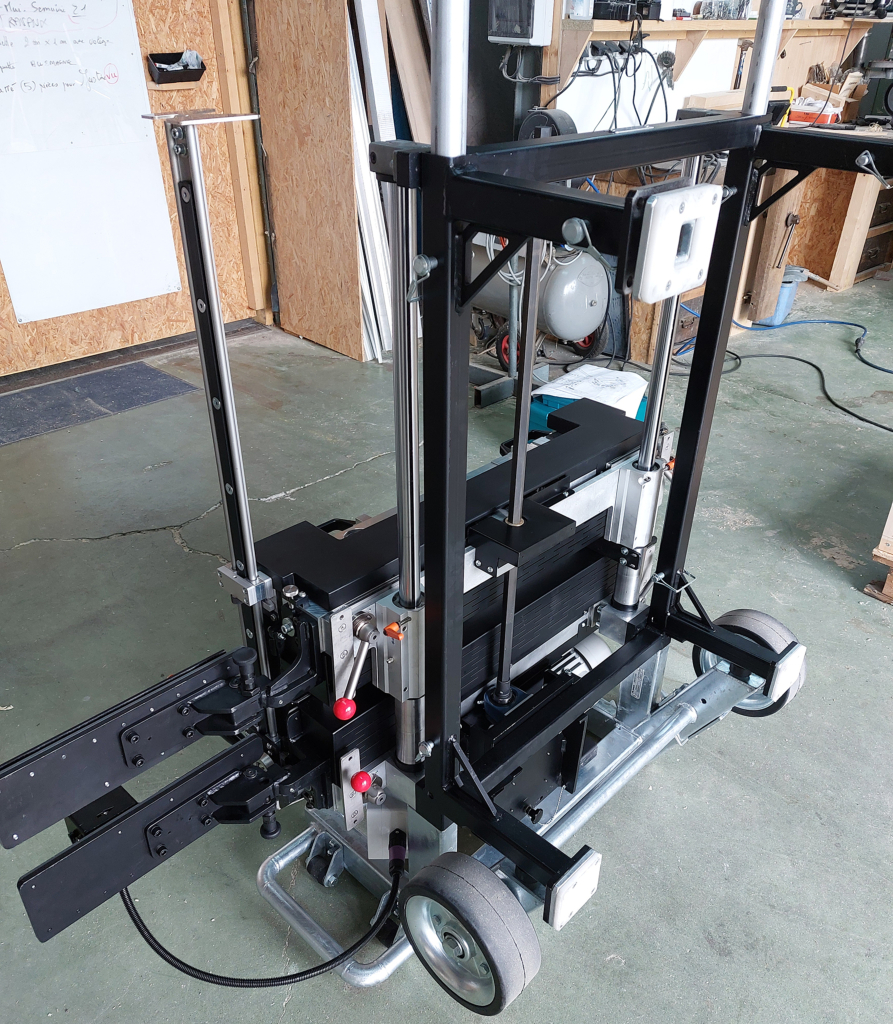

    • Even easier with the "mobility kit" trolley frame
    • Moveable with only one person
    • Climbs on a pavements with sideways movement and easy to pass through doors with the machine vertical
    • Effective motor damage protection
    • Wheel position "off-road mode" for rough terrain
    • Save time and increase quality with the added "cut to length" option

    Ease and use of profiling

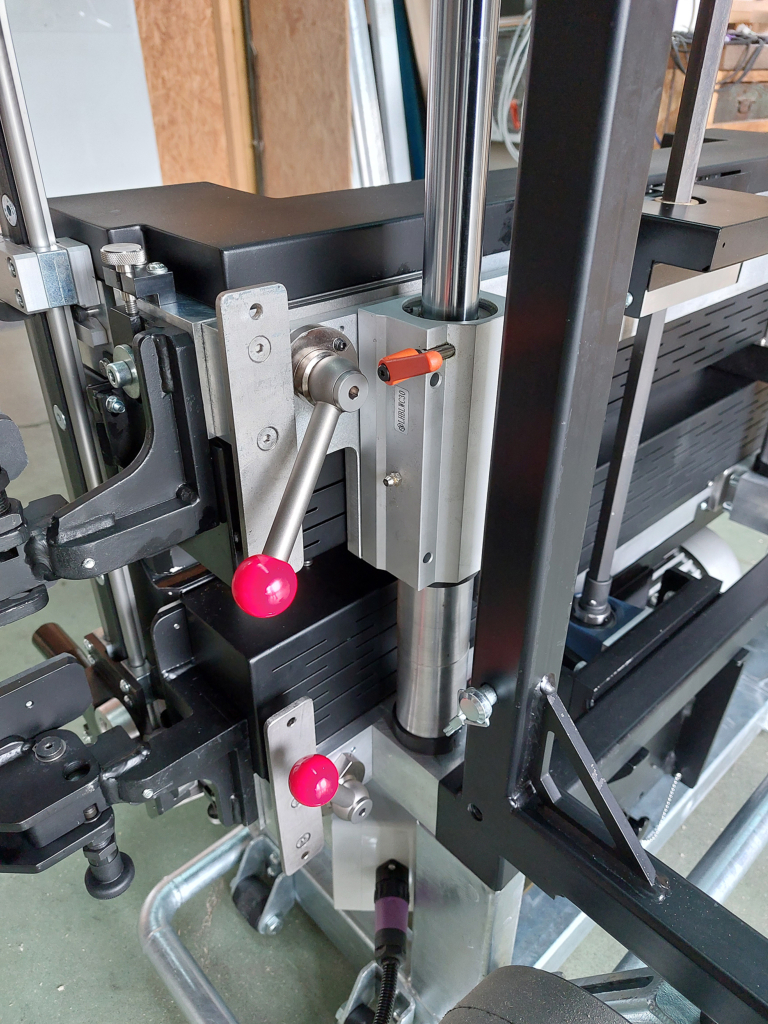

    • Tool-free operation: the profiling width and height of the straightening roller can be adjusted by means of the handles.
    • The profiling train is set at the factory
    • The straightening roller enables the horizontal position of the profile panel to be maintained by precise adjustment without the use of tools
    • Profiling width with sheets from 230mm to 780mm
    • Length: 1250mm
    • Width: 1095mm
    • Height: 605mm
    • Weight: 201kg
    • Working width: 230mm to 780mm
    • Profiling speed: 18 lm/min
    • Minimum metal sheet length: 500mm
    • Power supply: 110-115V

    Technical capabilities
    • Steel 200N/mm2: 0.4mm - 0.6mm
    • Aluminium A5 1/2 hard H24: 0.4mm - 0.7mm
    • 1/4 Hard copper: 0.4mm - 0.7mm
    • Hard 470 N/mm2 stainless steel: 0.4mm - 0.5mm
    • Zinc: 0.4mm - 0.85mm
