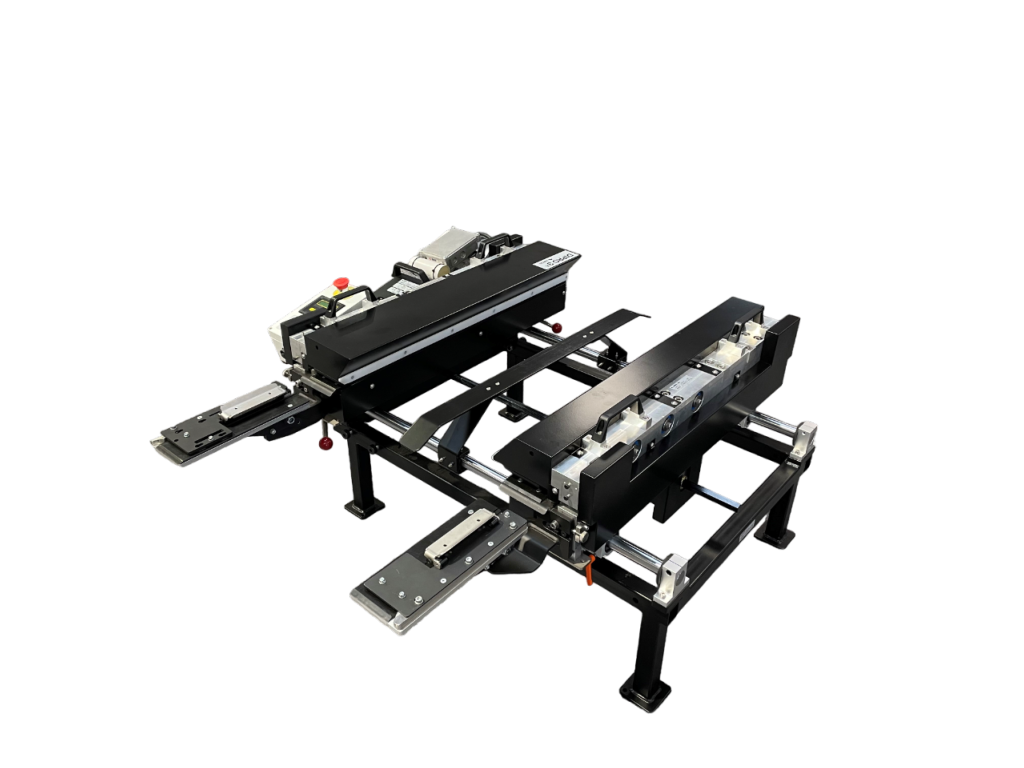

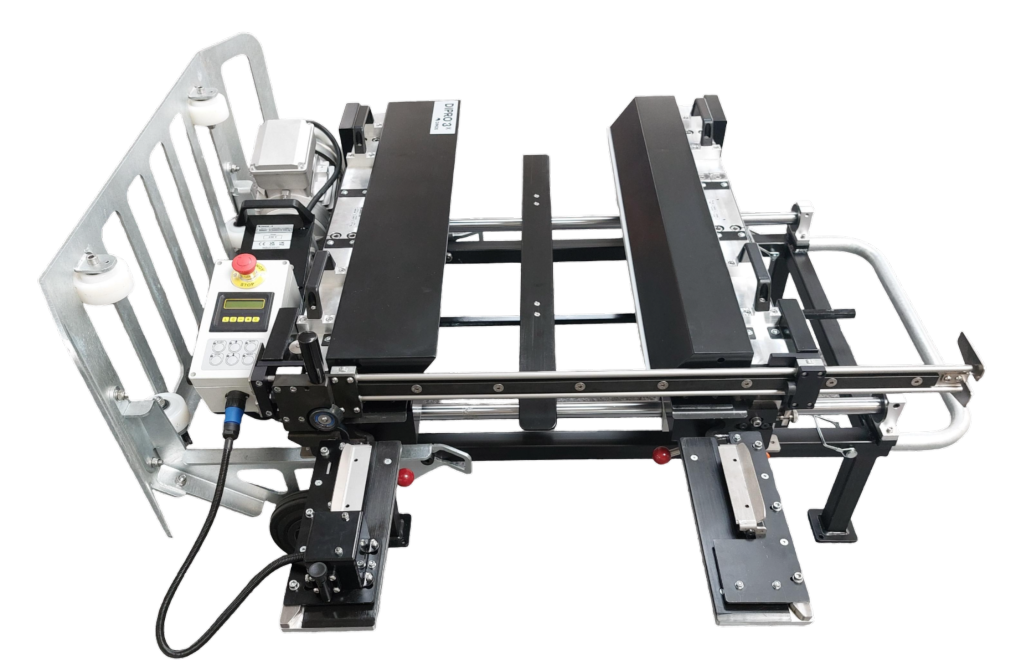

Dimos Dipro 3X Modular Profiling Machine with Full Options

(Code: Dimos-086400)
The standing seam profiling machine that offers unmatched quality on all metals, with easy programming for the number and lengths of panels, precise cutting, and exceptional mobility. A pleasure to use!
£ 17,970.00
201000
  1. Key Features
    • Perfect for all metals
    • Profiling sheet quality equivalent to workshop machines
    • Modular machine for easy transportation
    • Easy to use

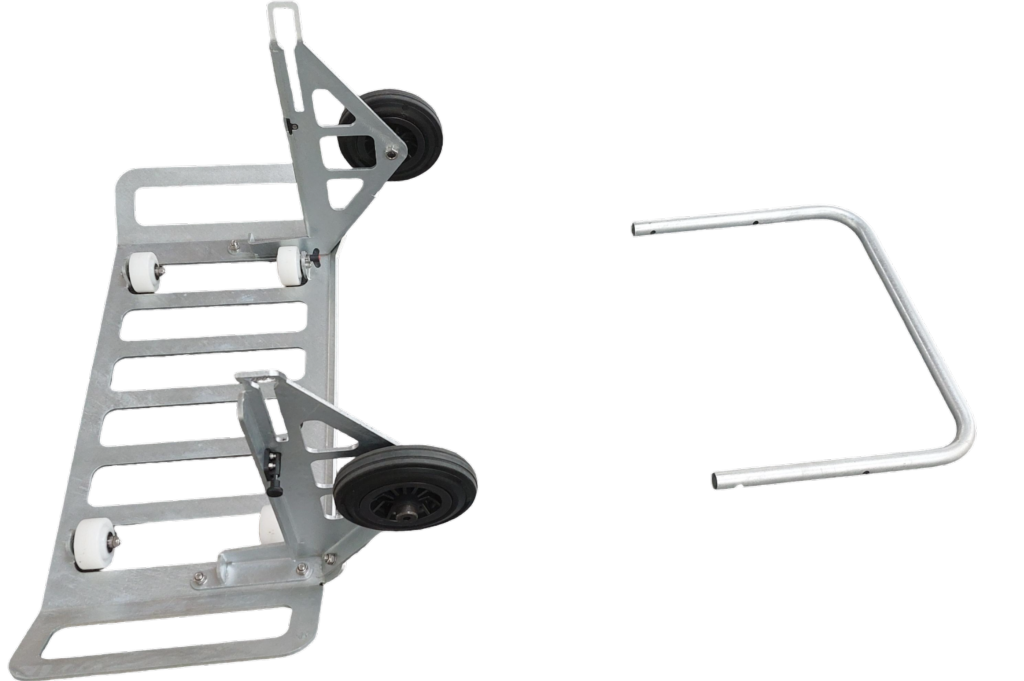

    • Effortless machine movement
    • On-site profiling or on the roof

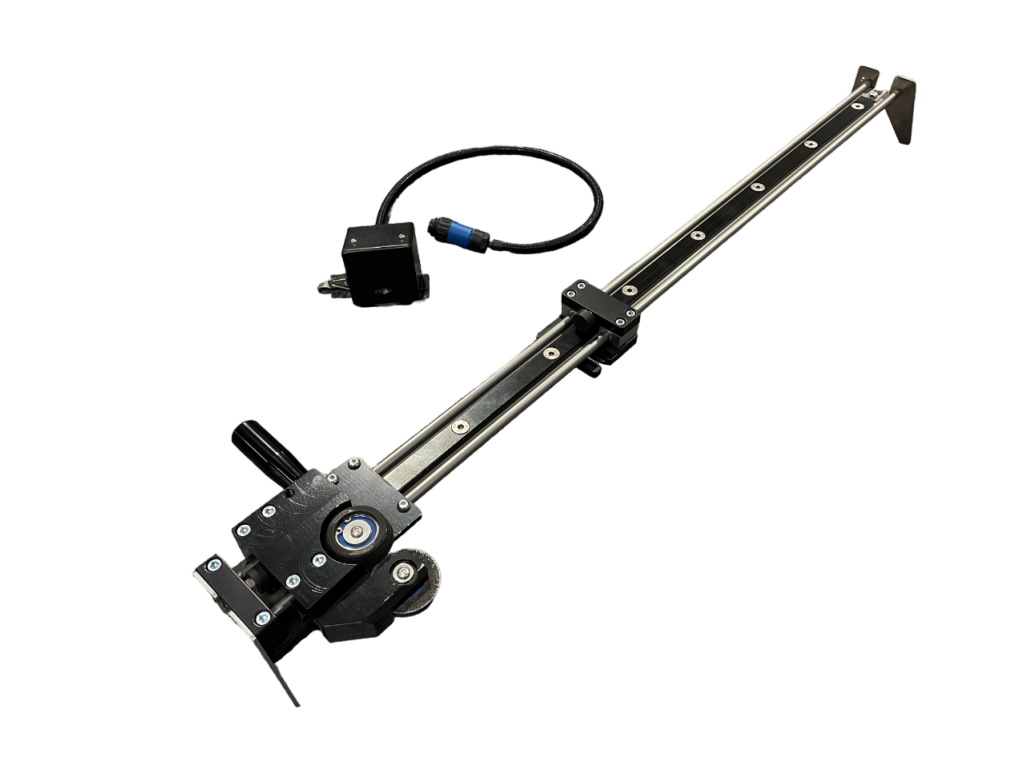

    • On-site cut to length
    • Facilitated door and elevator passage through vertical movement
    • Easy machine storage
      • Horizontal storage
      • Vertical storage
      • Truck storage
      • Small vehicle storage
      • Compact space storage
    • High productivity with fast profiling speed
    • Tool-free operation
    • Tool-free plug-in and unplugging

    • Length: 1450mm
    • Width: 1100mm
    • Height: 680mm
    • Weight: 242kg
    • Power supply: 110 V

    Profiling capabilities
    • Working width: 230mm to 800mm
    • Minimum metal sheet length: 500mm
    • Profiling speed: 16lm/min

    • Material Thickness  Min to max (mm)
      Steel   0.4 to 0.75
      Aluminium   0.4 to 0.8
      Copper   0.4 to 0.8
      Zinc   0.4 to 0.8+
      Stainless Steel   0.5
