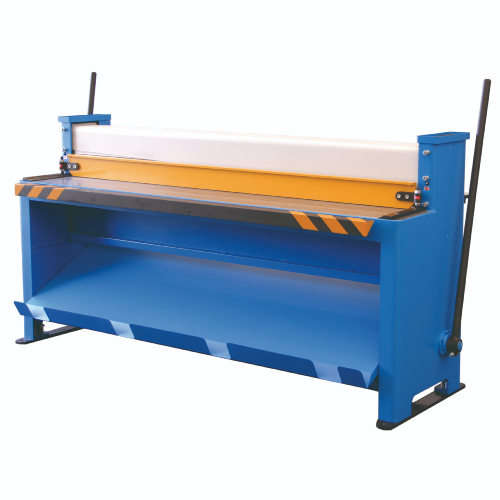

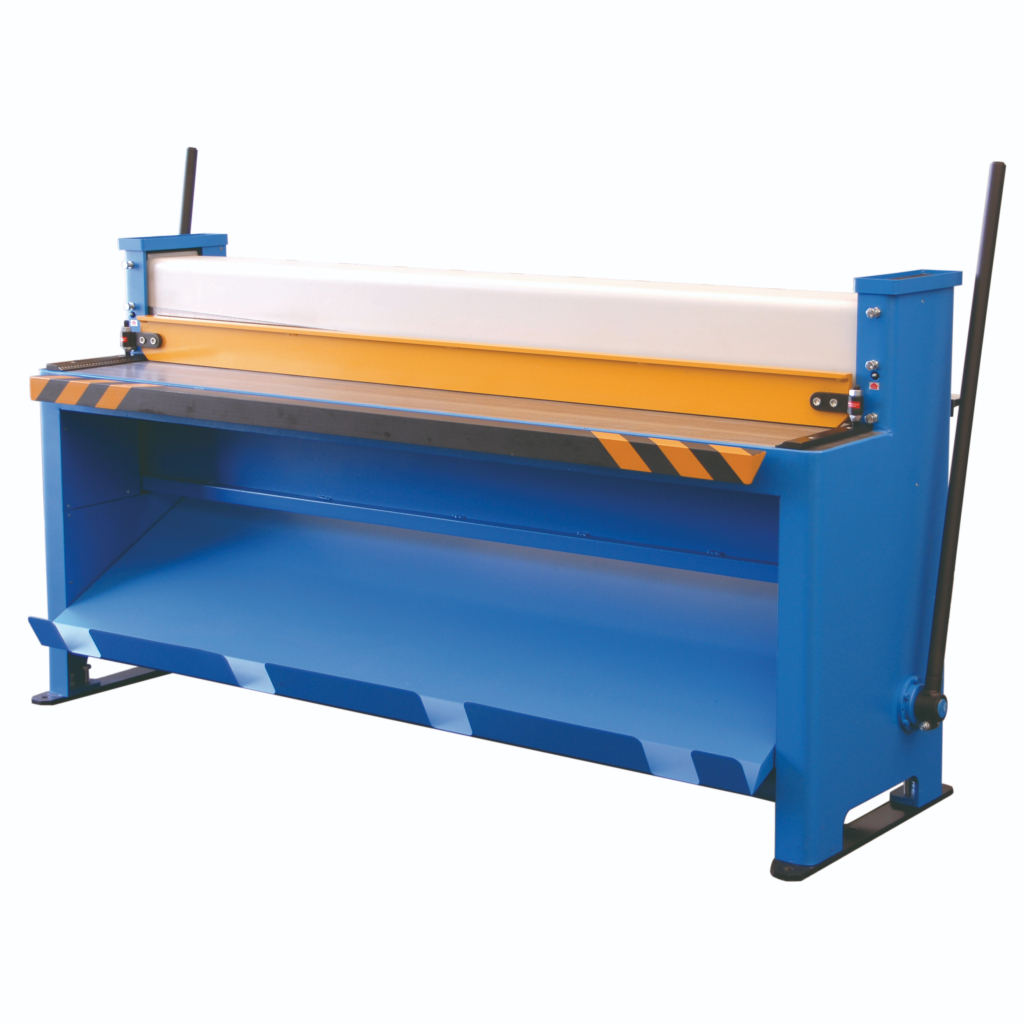

Dimos Guillotine Shear

(Code: Dimos-074050)
Manual guillotine shear, cuts sheet metal effortlessly in a straight line.

Please contact us for price, options and availability.
Length :
590000
  1. Manual guillotine shear, cuts sheet metal effortlessly in a straight line.

    Advantages
    • Ease of use with the front table with extension.
    • Recovery tray and two lever arms.
    • Productivity and precision thanks to the back gauge, graduated table and the sheet clamp before cutting.
    • Quality and robustness define the manual guillotine shears for effortless cutting.

    Features
    • Steel design.
    • Workshop model.
    • Working length: 2m.
    • Cutting depth: unlimited.
    • Cutting table graduated up to 300mm and extendable up to 620mm.
    • Collection tray for repeat cutting.
    • 500mm rack rear back stop for rectangular cuts.
    • Graduated table (every cm) allowing rapid and precise positioning of the sheet.
    • High resistance steel blades.
    • Bronze blade guides.
    • Blunt or damaged blades can be reversed.

    Please contact us for price, options and availability.
    • Copper (1/4 hardness) capacity: 1.25mm
    • Zinc capacity: 3.3mm
    • Aluminium (A5 1/2 hardness H24): 2mm
    • Steel (400N/mm˛) capacity: 1.25mm
    • Stainless steel (470N/mm˛) capacity: 1mm
    • Working length: 2000mm
    • Length: 2400mm
    • Width: 1250mm
    • Height: 1120mm
    • Weight: 590kg
