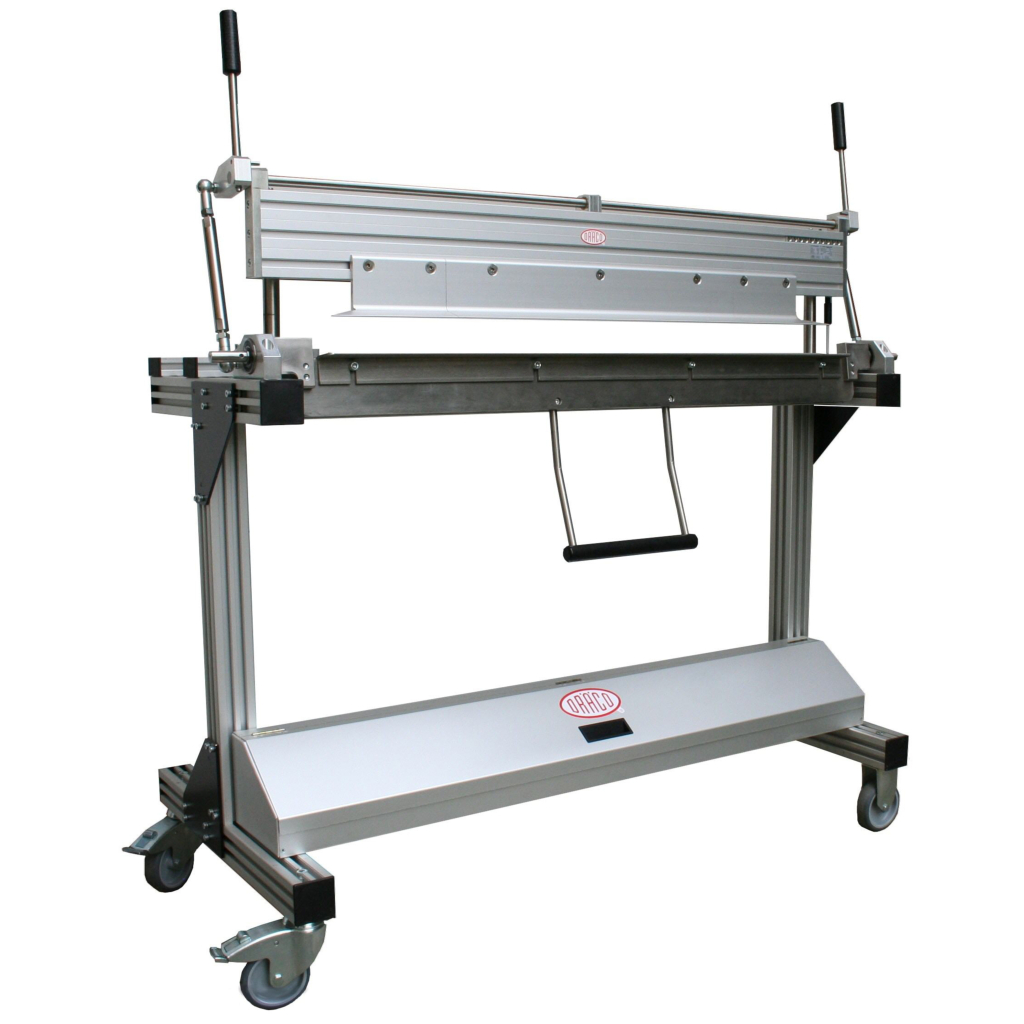

Draco Folder K1-AGNU-3

(Code: Draco-91292-3)
Contact us for price and availability.

Ideal for the roof & facade industry, drip edges, transverse fences and flood defense.
  1. Function
    • Ideal for roof and wall cladding.
    • Solves all technical bending problems.

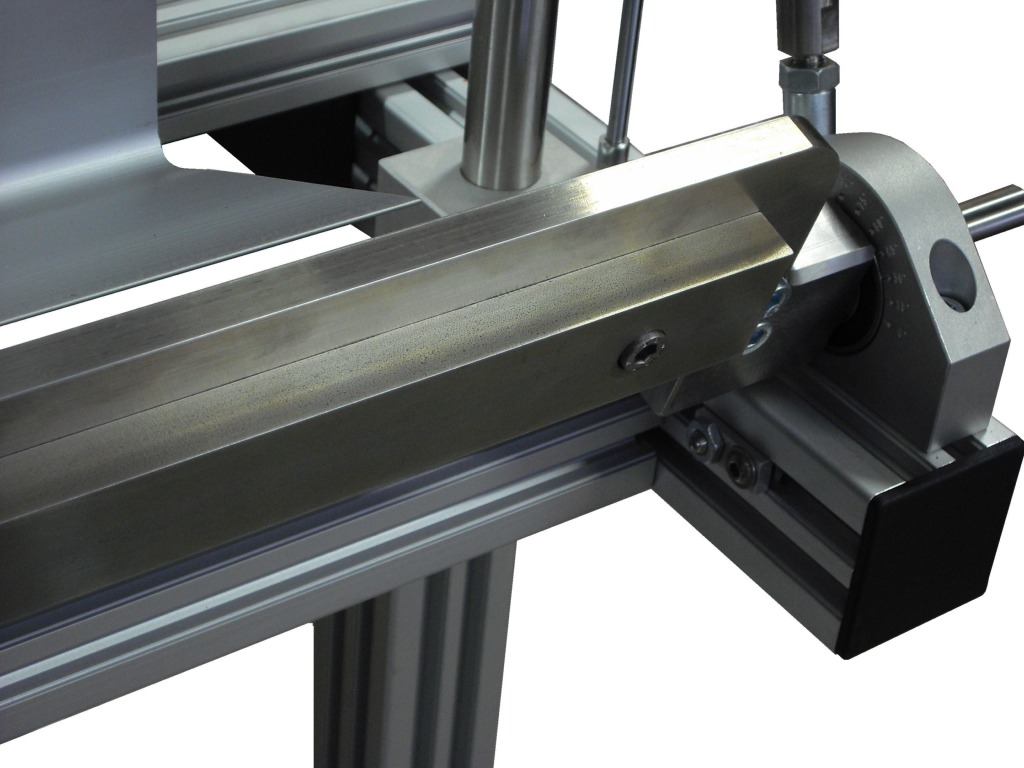

    • Clamping of sheet metal with eccentrics and hand lever.
    • Gas pressure spring counterbalances top clamping bar.

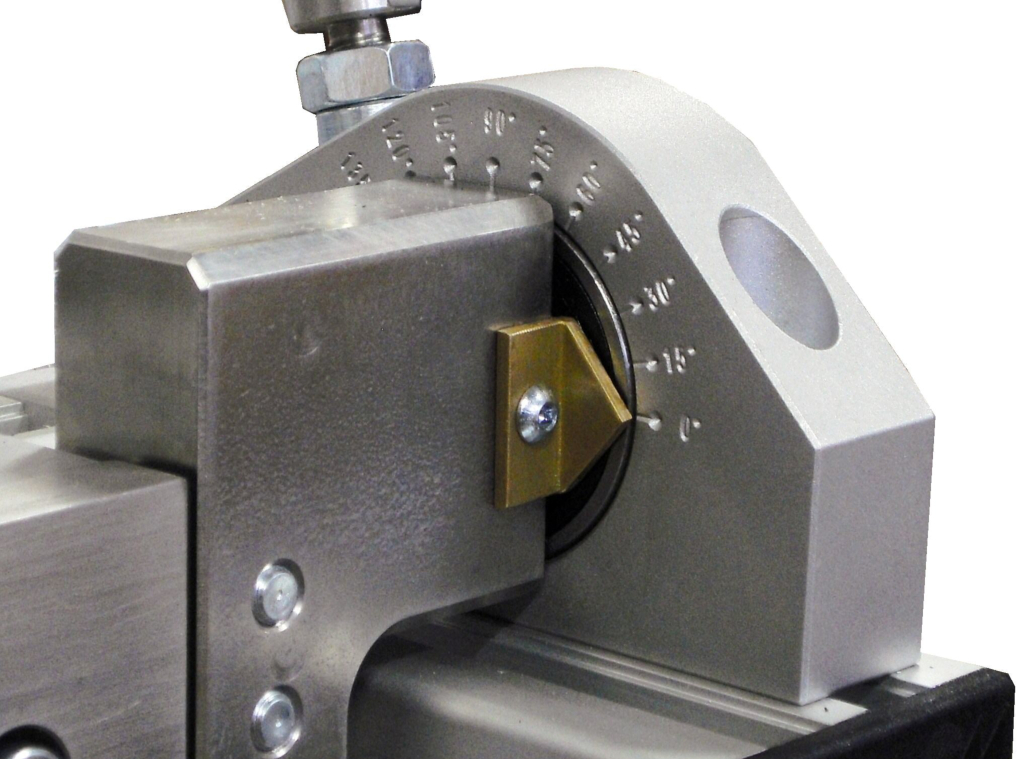

    • Bending possible in all technical directions for roof and wall cladding.
    • Brake can also be screwed on to a working bench. Brake removable from frame, for easy transport to the roof.
    • All parts are made of rustproof materials.

    • Segments for top clamping bar 560 / 202R / 202L / 102 / 127 / 76 / 52mm.
    • Assortment for bottom bending bar 1120 / 520/ 445/ 290mm.
    • Frame with 4 castors.
    • Allen wrenches.
    • Straight fence.
    • Angle fence.
    • Metal box for safe storage of parts and tools.

    Contact us for price and availability.
    • Stainless steel capacity: 0.5mm
    • Aluminium, copper, zinc capacity: 0.8mm
    • Working width: 1120mm
    • Opening of top clamping bar: 60mm
    • Weight: 80kg
