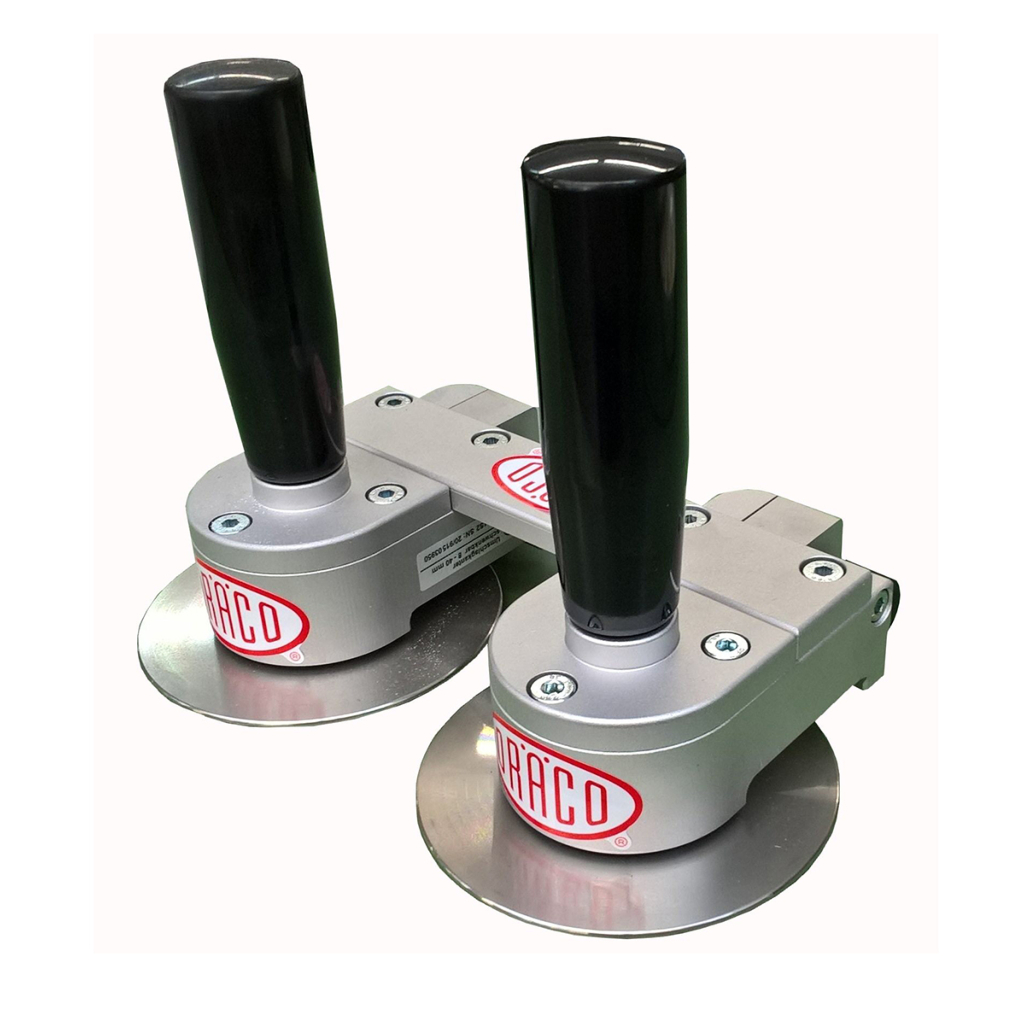

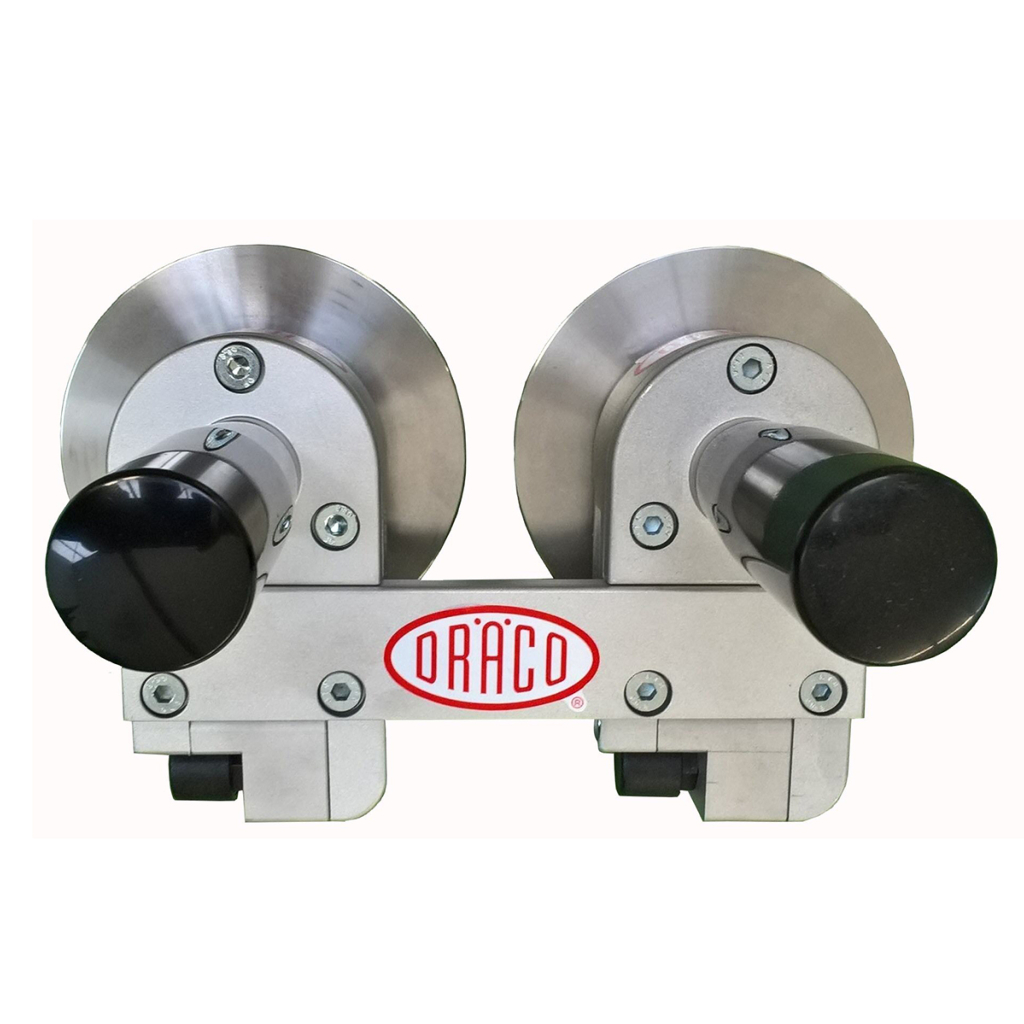

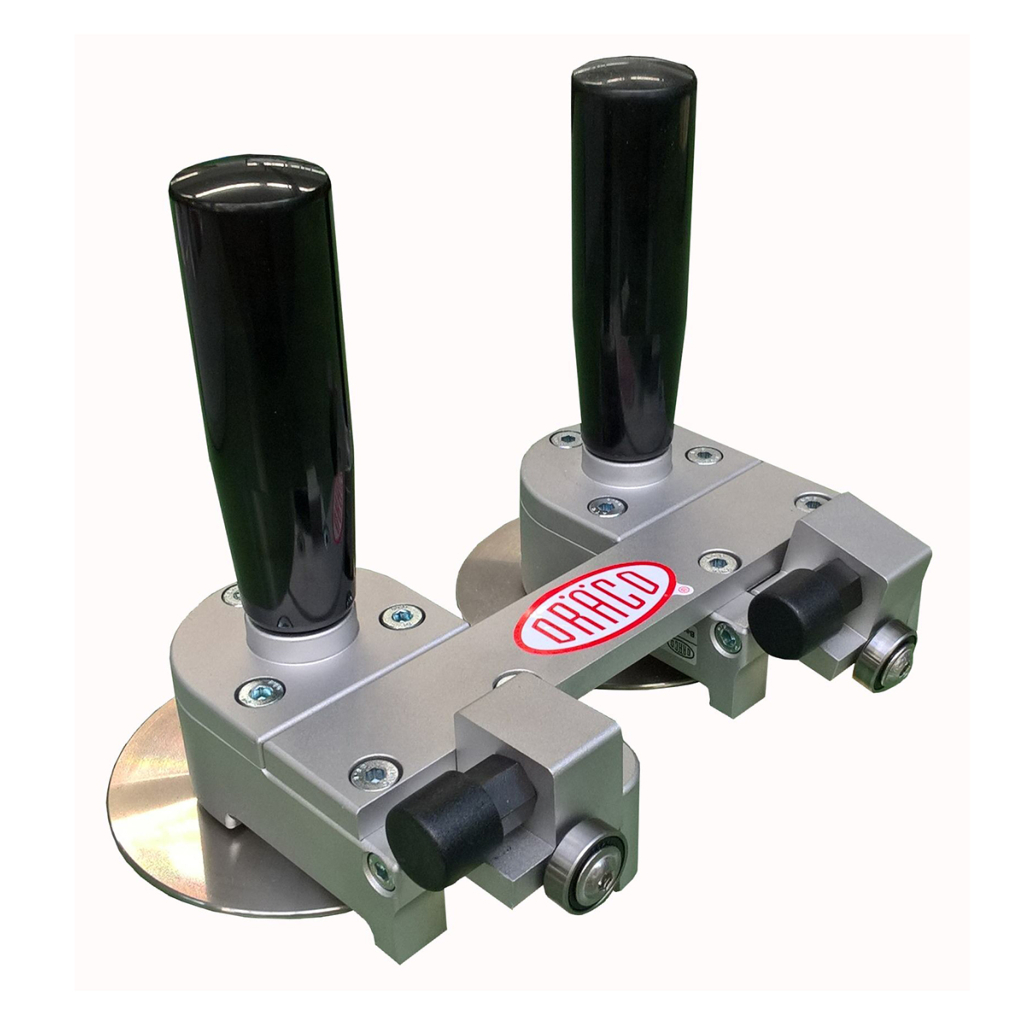

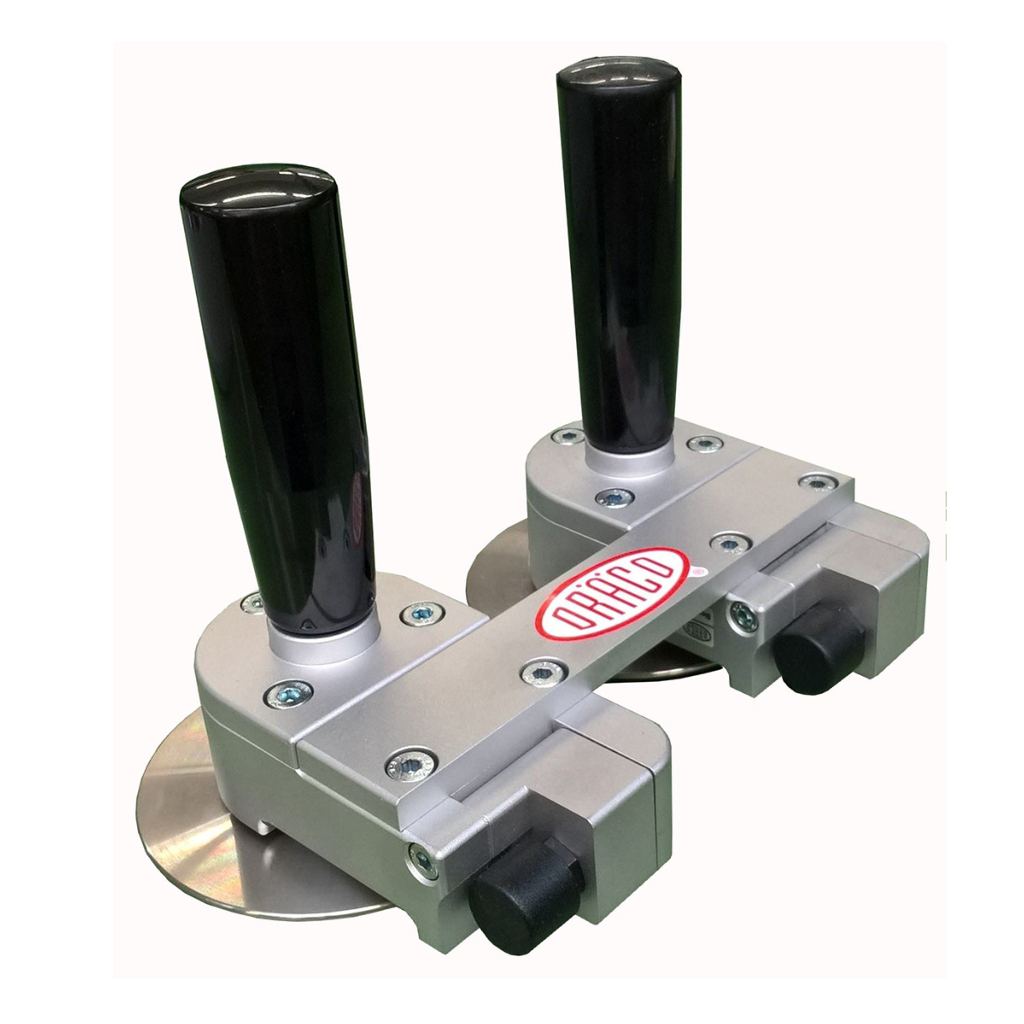

Duo Disc-Bender with Swivelling Wheel

Draco
(Code: Draco-91542S2)
Ideal for long work pieces.
£ 653.00
2700
  1. Ideal for long work pieces.

    • Made of 2 Single Disc Benders with Swivelling Wheel. Tool can be dismantled to get 2 single disc benders by unscrewing the adaptor.
    • Swivelling wheels help place the tool easily in work pieces that are difficult to access.
    • Bends a right angle from 90° to 180°.
    • Bending height from 8mm - 40mm.
    • Perfect for eaves, valley channels, cross seams, alterations, gutter flashings and many more.
    • Maximum metal thickness up to 1mm (depending on material).
    • Inner and outer radii possible, maximum bending height depends on radius!

    How does it work?
    Quick & easy. Because there is no adjustment necessary you can start right away.  Place bender on the 90° angle. You will notice that the convenient space of the  guiding role enables the simple placement of the tool. Move bender forth and back by pushing slightly down till requested angle is reached (max. 180°).  You achieve a perfect result without damaging painted or coated metal.
    • Zinc, copper, aluminium capacity: 1mm
    • Steel (400 N/mm˛) capacity: 0.6mm
    • Stainless steel (600 N/mm˛) capacity: 0.4mm
    • Bends from - to: 8 - 40mm
    • Bends from - to: 90° - 180°
    • Weight: 2.7kg
