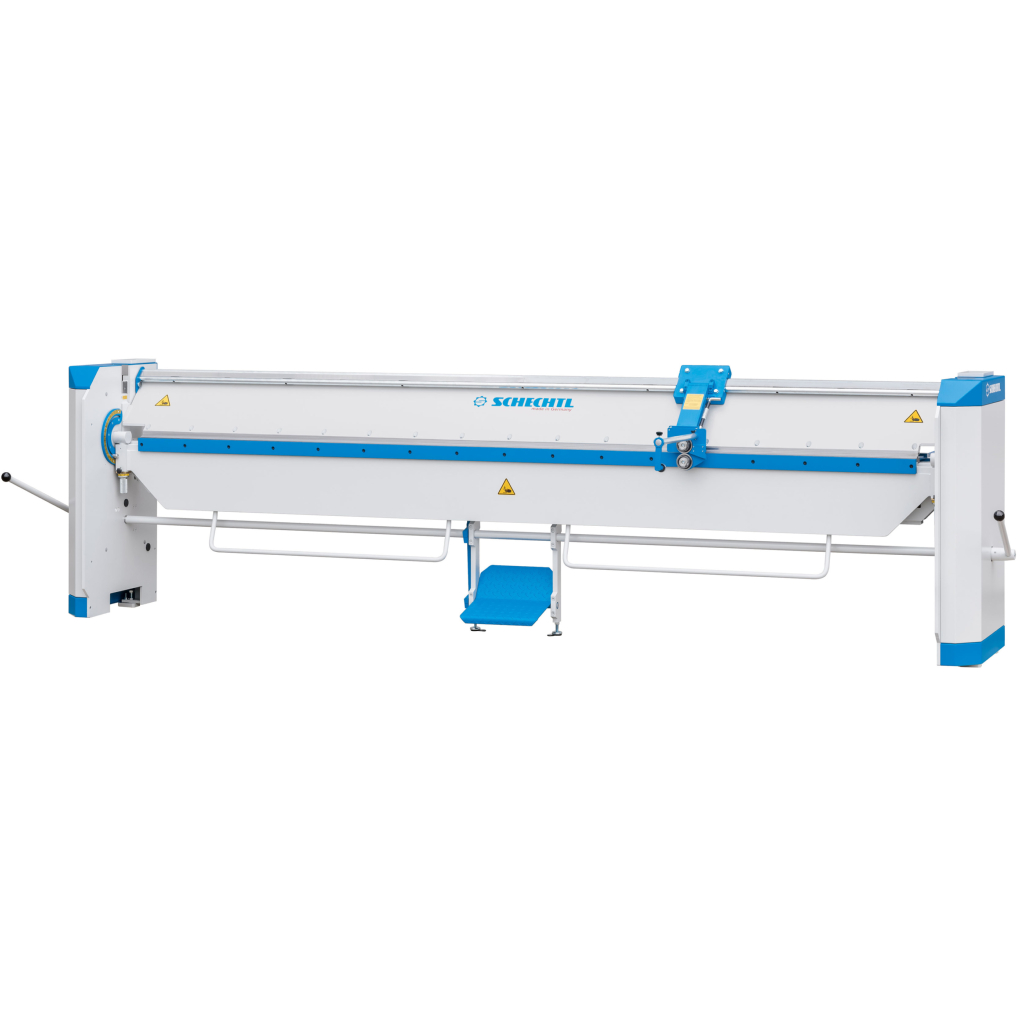

HA Folding Machine

(Code: Schechtl-HA100)
Manual workshop bending machine designed for thick sheets & long working lengths.

Length :
980000
  1. Manual workshop bending machine specially designed for thick sheets and long working lengths.

    Our models HA 310 and HA 400 are inexpensive alternatives to the motor-operated folding machines in their capacity range.

    Benefits
    • Can be used by anyone, nearly impossible to break.
    • One-man operation without expenditure of force.
    • Work piece clamping with large foot pedal – hands-free operation for triggering bending and a high level of operational safety.

    Features
    • Standard equipment:
      • 1 sharp rail 20°, radius 1mm, offset, 66/24mm for clamping beam.
      • 1 insert rail each 68/10mm and 68/24mm for bending beam.
      • 1 support grid.
      • 1 foot pedal.
    • Extremely sturdy and powerful.
    • Ideal for long and thick sheets in extensive exterior construction, particularly flat-roof construction.
    • Tried and tested in repair work as well.
    • All bending rails can be exchanged – set to any material.

    Optional Accessories
    • Roller shear RSL - the weight balance of the roller shear is achieved by a gas spring and double pipe guide.
    • Manual back gauge 750mm with support grid and swiveling fingers.
    • Different rails (contact us).
    • Goats foot tooling 93mm for clamping beam- the bending capacity is 50% below the specified machine performance.

    How it's Done
    The part is led through upper and lower bar and lower bar is closed vertically either with a foot pedal or with two handles on each side of the machine, so the piece doesn't slide forwards being clamped and the accuracy is preserved. The upper beam clamping pressure can be adjusted on each side of the machine separately. The upper beam can be opened to approx. 100 mm with a handle on each side of the machine.

    Contact us for price and availability.
  2. HA 100
    • Working length: 1,040mm
    • Steel 400N/mm˛ capacity: 3.00mm
    • Aluminum 250N/mm˛ capacity: 4.00mm
    • Stainless steel 600N/mm˛ capacity: 2.00mm
    • Copper 300N/mm˛ capacity: 3.00mm
    • Zinc 150N/mm˛ capacity: 4.00mm
    • Length: 1,900mm
    • Depth (machine only): 610mm
    • Total height: 1,050mm
    • Clamping beam opening height: 120mm
    • Weight (HA 100): 980kg
