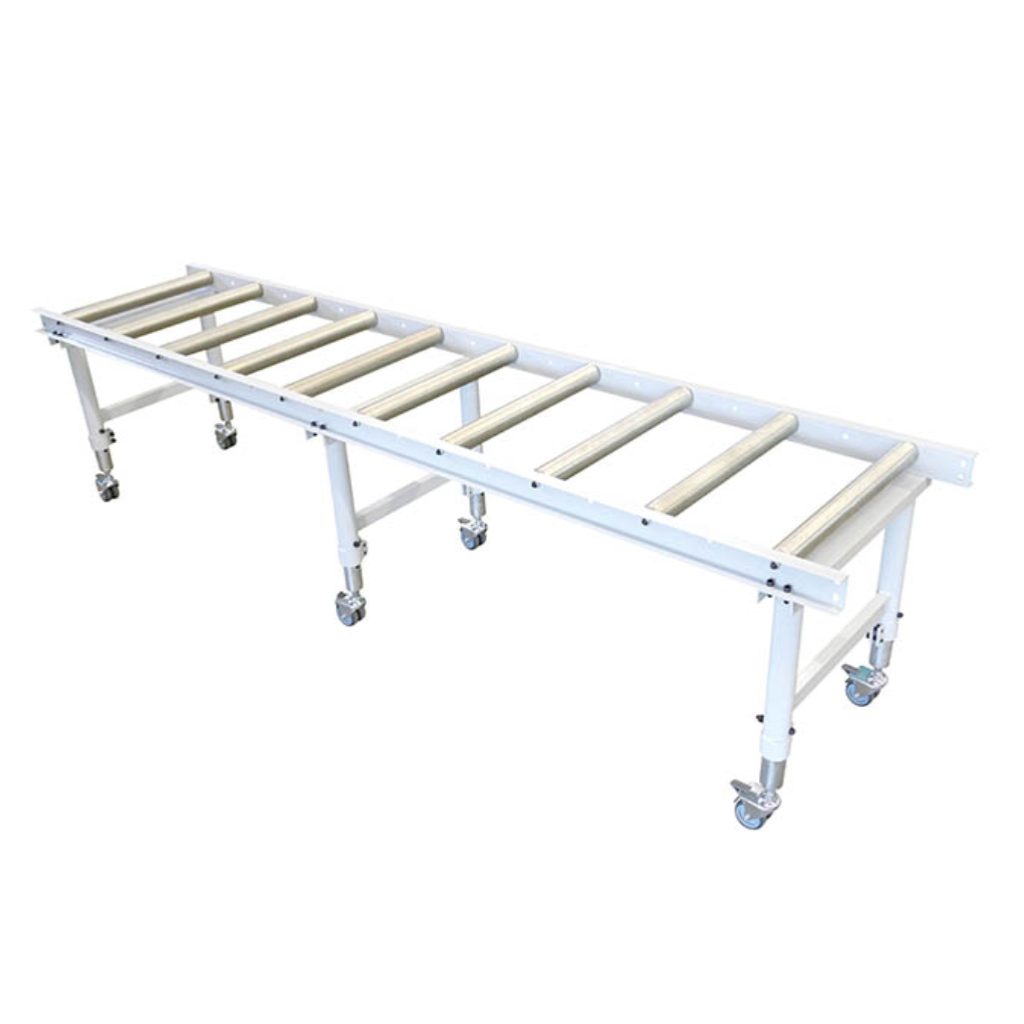

Height-adjustable roller table TR3

Height-adjustable roller table TR3

Jouanel
(Code: JOU-TR3)
Available at Supplier

The gravity roller conveyors for workshop, can support and evacuate large width standing seam trays at the roll-forming machine output. Its track width of 700 mm, its long length and the possibility of joining them together also make it very versatile for other conveyor applications.

95000

    1. The gravity roller conveyors for workshop ref.TR3 can support and evacuate large width standing seam trays at the roll-forming machine output. The adjustable feet from 600 to 900 mm will enable to adapt the conveyor to the output height of the machine so that the shaped parts remain flat without risk of bending or distortion. Its track width of 700 mm, its long length and the possibility of joining them together also make it very versatile for other conveyor applications.

    • Improves machine output workflow
    • Respects the flatness of the trays on long lengths
    • Very versatile use in the workshop for other conveyor applications
    • Height-adjustable from 600 to 900mm
    • Robust product allowing a maximum load of 800 kg
    • Possibility of assembling the tables
    • Fixed or mobile (6 optional swivel casters)
    • Adjustable Height: from 600mm to 900m
    • Length: 2900mm
    • Width: 700mm
    • Roller Diameter: 60mm
    • Number of rollers: 10
    • Roller pitch: 300mm
    • Maximum load: 800kg
    • Weight: 95kg
