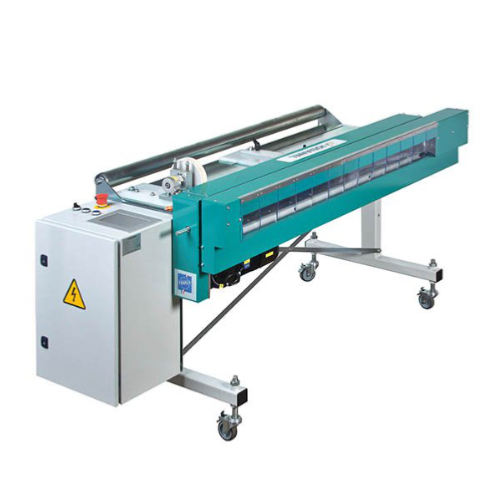

Light cutting unit 1.25m x 0.7mm - Electric uncoiling, electric cutting

Light cutting unit 1.25m x 0.7mm - Electric uncoiling, electric cutting

Jouanel
(Code: JOU-CLD-AE-CTE)
Available at Supplier

Electric cutting line, reference CLD-AE-CTE, useful cutting width 1.25m, 0.7mm steel capacity, uncoiling and electric cut, equipped with a numerical control with touch screen 7".

Machine type :
260000

    1. Electric cutting line, reference CLD-AE-CTE, useful cutting width 1.25m, 0.7mm steel capacity, uncoiling and electric cut, equipped with a numerical control with touch screen 7"

    • Electric uncoiling
    • Speed variator
    • Drive by rubber rollers
    • Adjustable input guides from 500 to 1250mm, on slides and locking handles
    • Mount adapts to coils with a minimum width of 250 mm
    • Guiding of the metal sheet on ball bearings
    • Free roller at the entrance to guide the metal sheet in height
    • Entry table with nylon protection to avoid marking under the metal sheet
    • Sheet clamping device for cut, by rubber roller with reverse-lock device of the coil
    • Electric cut by roller shear
    • Length mesuring wheel
    • 4 caster wheels with brake

    2. Maximum Cutting Capacity

    • Soft Steel capacity (mm) 0.7
    • Zinc, Copper, 1050-H44 Aluminum Capacity (mm) 0.8
    • Stainless Steel Capacity (mm) 0.5

      • Upcoiling

    • Minimum width of the coil (mm) 250
    • Maximum width of the coil (mm) 1250
    • Power supply (V)*220V single
    • Power (kW)0.18

      • Dimensions

    • Operating dimensions (mm) 1800 x 800 x 1110
    • Transport dimensions (mm) 2000 x 1100 x 1200
    • Net weight (kg) 190
    • Gross weight (kg) 260
