Master 0420

(Code: WUKO-0420)
Available at Supplier
For making the profile for single and double-lock standing seams.

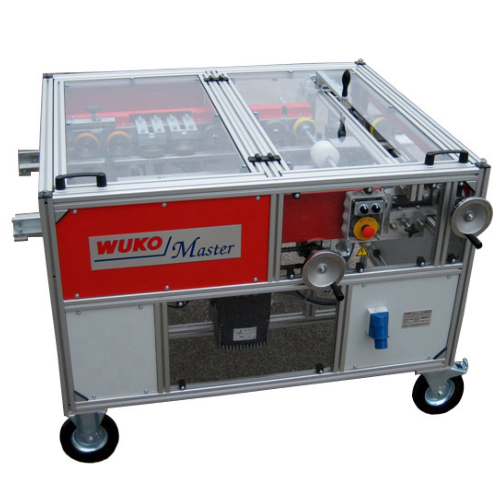

  1. Roof panel machine for making the profile for single and double-lock standing seams.

    • Machine frame made of modular aluminium profile system.
    • Upper machine cover: Swing doors, easy to open, with safety switch, frame elements made of transparent, impact‐resistant polycarbonate, clear view during profiling process, easy access for adjustment and service.
    • Mobile, two fixed and two swivel castors with brakes.
    • 230V motor with frequency converter for continuously variable working speed: 0 -12 m/min.
    • Forward and backward run.

    • Fabrication of the profile for the single or double-lock standing seam - seam height 25mm.
    • Working width between 290mm and 810mm continuously adjustable by hand wheel over two spindles. Panel width about 210mm - 730mm.
    • Inlet guides easily and precisely adjustable (measure correction on the profile).
    • Clean profile, poor in tension, made by eight hardened roll forming stations.
    • 8th forming station for aligning the panels and for curving the panels - convex or concave - smallest radius about 6m.
    • Cut-proof, extremely resilient polyurethane coated drive rollers.
    • Electromechanic preset counter safely placed within the frame.
    • Also for profiling short (min. length about 500mm) or tapered panels.

    • Manual cross-cutting facility, handle turndown for transport.
    • Burr-free, clean cut.
    • Comfortable feed by hand wheel.

    Contact us for price and availability.
    • Galvanized steel capacity: 0.7mm
    • Aluminium, copper, zinc capacity: 0.8mm
    • Stainless steel capacity: 0.5mm
    • Motor: 230V
    • Length: 1540mm (with guides)
    • Width: 1310mm (with handles)
    • Height: 1050mm
    • Weight: approx. 350kg
