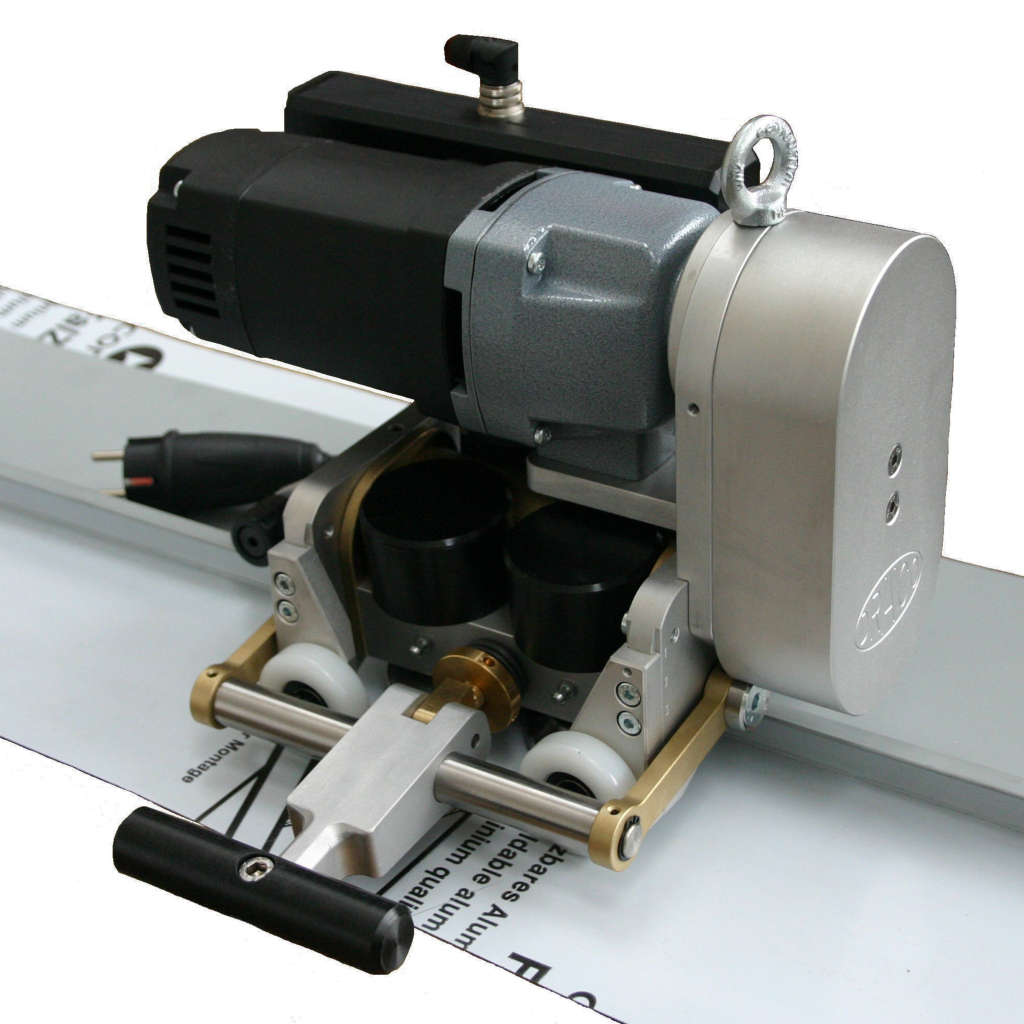

Power Seamer K9-1-GWS

Draco
(Code: Draco 91580-1)
Seam height 25mm - 60mm

Two forming station model of the K9-1 for seaming single lock seams.
£2,787.00
16000
  1. Two forming station model of the K9-1 for seaming single lock seams on walls, facades and barrel curved roofs.

    This is the ideal angle-seam closer for facades, round dormers and domed roofs. Minimum radius is 60cm. There is a switch for forward and reverse which allows running up and down the seam for one-man operation. Closes sheet metal, aluminium, zinc and copper up to 0.8mm and stainless steel up to 0.5mm.

    Features
    • Single lock seaming in one pass.
    • Variable pressure adjustment.
    • Variable speed control.
    • Adjustable for seam heights from 25mm up to 60mm.
    • Clean transition at cross-seams by using variable pressure adjustment.
    • Maintenance free, safe operation.
    • No damage to painted or coated materials.
    • Can be used or removed in the middle of a seam.
    • Aluminium, copper, zinc, steel capacity: 0.8mm
    • Stainless steel capacity: 0.5mm
    • Seam height: 25-60mm
    • Working speed: 5-13m per min
    • Capacity: 1150 KW/V
    • Weight: 16kg
