S-5-B Clamp

S-5!
(Code: S5-B)
For traditional 25mm & 38mm double-folded standing seam copper profiles.
£ 22.11
235

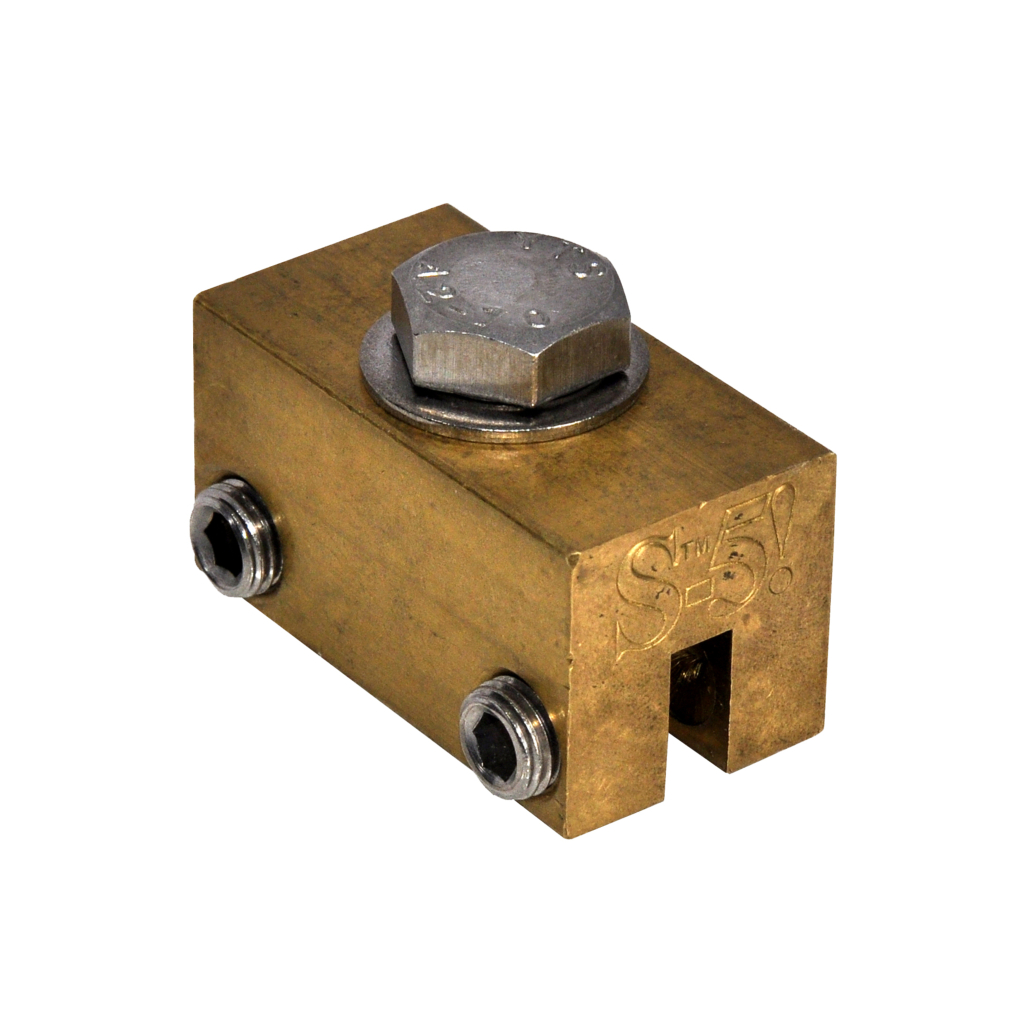

  1. This brass clamp maintains the elegance of your copper roof with no harm to the roof material.

    Architects and roof designers choose copper roofing for its timeless elegance and durability. The S-5-B allows you to maintain that theme when mounting snow guards or utilities on the roof. The visual appeal of copper roofing also makes it a superior roofing type. The B ("B” is for Brass) is designed for double-folded, copper standing seam panelling.

    Choose the B to mount a variety of utilities, such as rooftop lighting, solar arrays, lightning protection and other appurtenances to your copper roof.

    Product Specifications
    • Designed for double-folded 16 and 20-oz copper standing seam roofs.
    • Metallurgical compatibility with copper.
    • Preserves aesthetics of copper roof.
    • Heavy-duty applications, such as snow retention.
    • Two T-30 Torx setscrews (Torx bit tip provided).
    • One M8 bolt included.

    Is the S-5-B the Right Choice for Your Roof Profile?

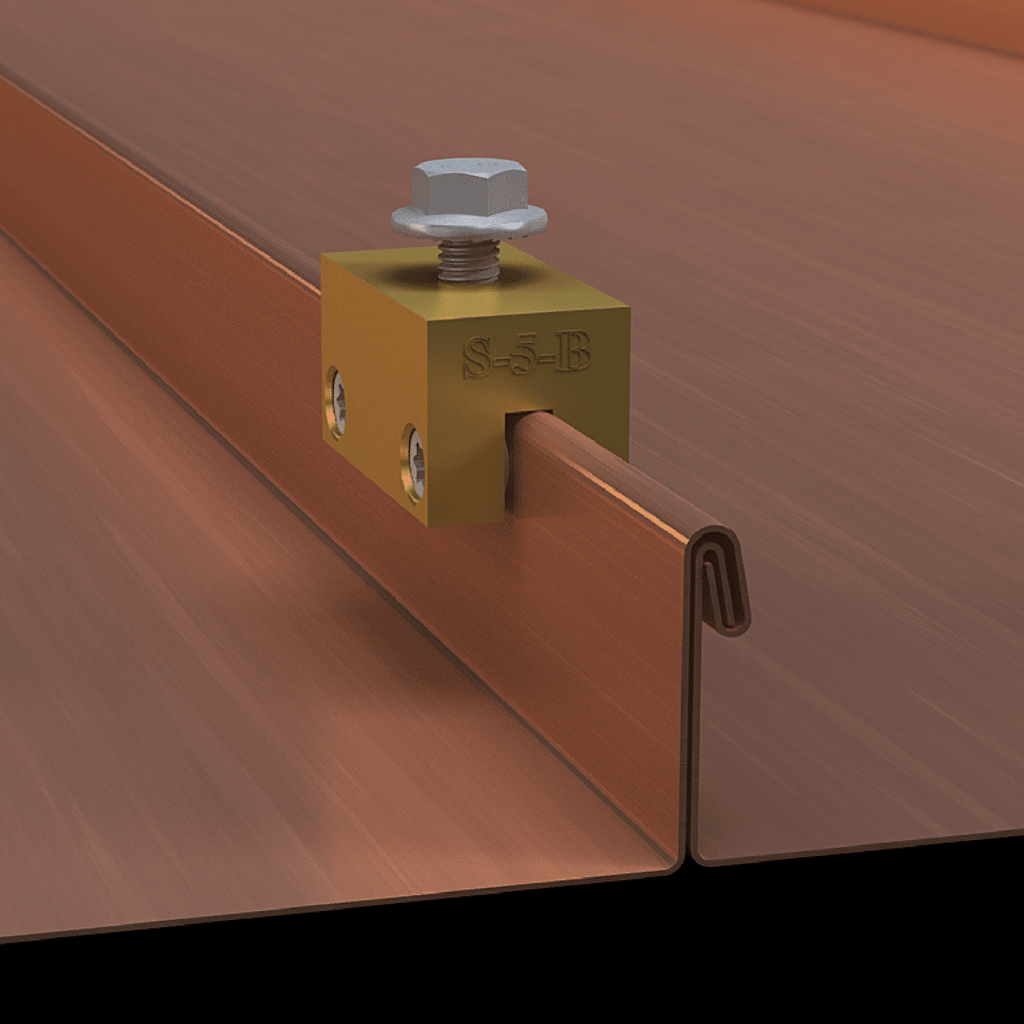

    How to Install the S-5-B Clamp on Your Roof Profile
    Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

    *See more detailed installation instructions in the downloads tab.

    Minis Available
    The B Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required. The Mini clamp is a bit shorter than the standard B with one setscrew rather than two.

    Rigorous load testing is performed on both standard and Mini clamps. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.
    • Weight: 0.24kg

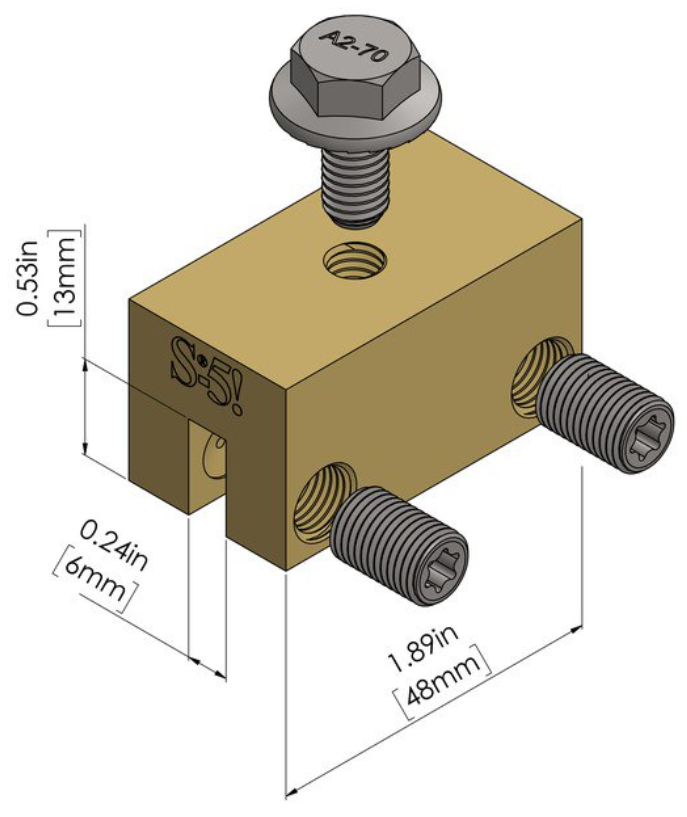

    • Dimensions:
