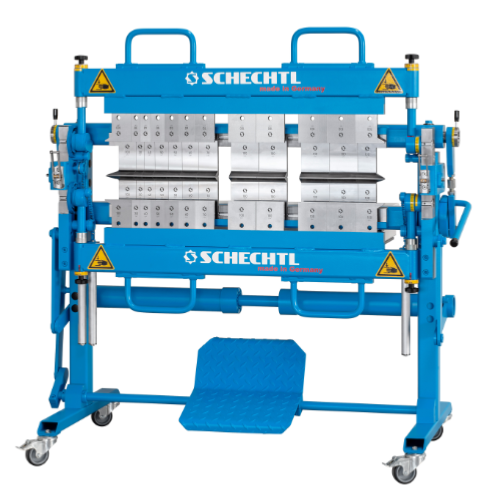

Schechtl UK-DB 1000mm

Schechtl UK-DB 1000mm

(Code: Schechtl-UK-DB100)
Available at Supplier
Manual Segmented Bending Machine
Machine Width :
390000
  1. Manual Segmented Bending Machine
      2. UK-DB
    • 2 bending beam function for maximum precision.
    • Versatile bending options: ideal for different applications
    • Time saving - change all segments in seconds without tools
    • Easy to move thanks to robust wheels

    Standard Equipment
    • Segments with quick clamping system on all beams
    • 100 mm height of clamping beam segments, standard radius 1,1 mm
    • 100 mm height of lower beam and bending beam segments
    • Clamping beam pressure setting and bending beam lowering device
    • Foot pedal, storage box and bending angle adjustment
    • 4 wheels
  2. UK-DB
    • Working length: 1,000mm
    • Steel 400N/mm˛ capacity: 1.50mm
    • Aluminum 250N/mm˛ capacity: 2.25mm
    • Stainless steel 600N/mm˛ capacity: 1.00mm
    • Copper 300N/mm˛ capacity: 2.00mm
    • Zinc 150N/mm˛ capacity: 2.00mm
    • Length: 1,537mm
    • Depth (machine only): 740mm
    • Total height: 1,595mm
    • Working height: 990mm
    • Weight: 390kg
    • Clamping beam opening height: 96mm
