SD5-1 Shear

Draco
(Code: Draco-61000-1)
Up to 1.0mm steel

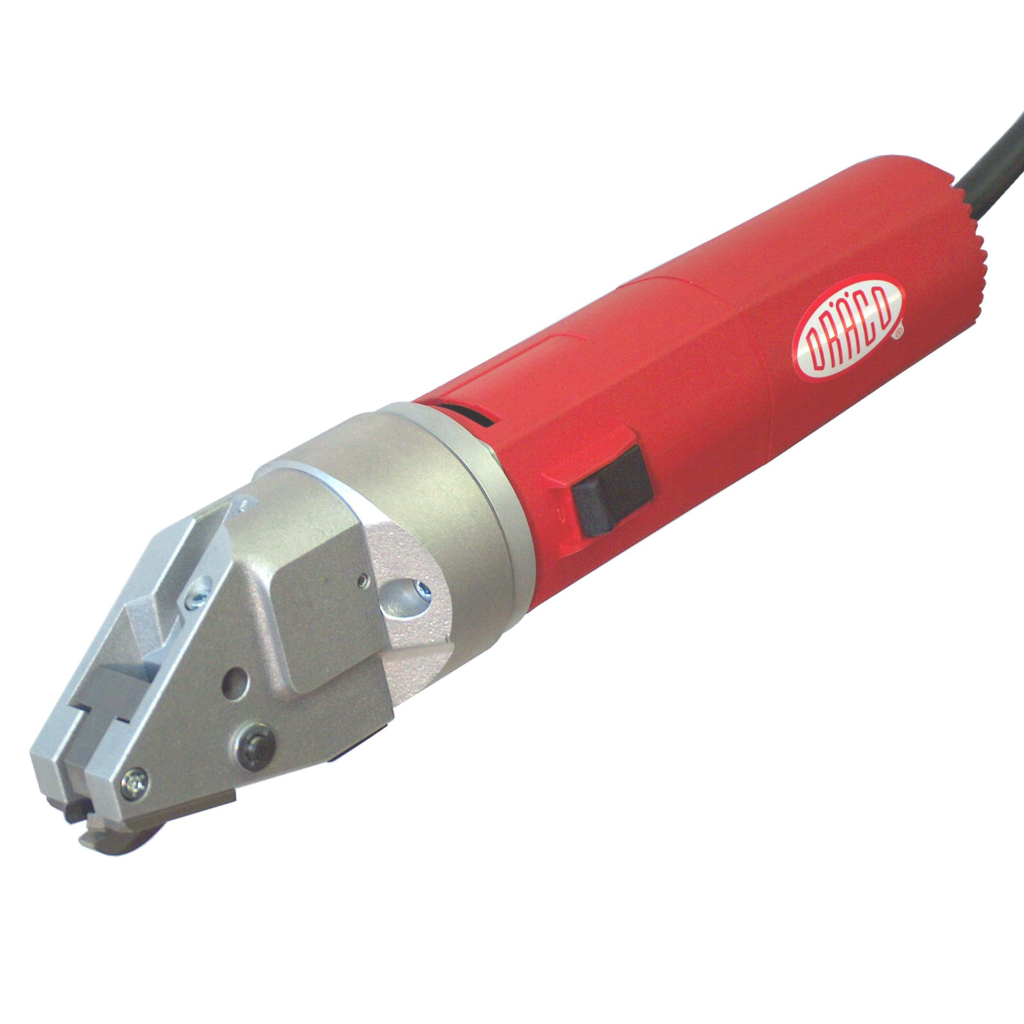

The SD5-1 is a very maneuverable shear that can make short turns (smallest inner radius 50mm).
£374.00
1600
  1. Up to 1.0mm steel

    The SD5-1 is a very maneuverable shear that can make short turns (smallest inner radius 50mm). This is therefore the ideal shear for zinc processors, interior construction, body shops, garage companies and damage repair!

    For example, perfect for the installation of sunroofs or in the ceiling construction for the installation of spotlights.Knives and jaws can be reground.

    These light, compact and robust shears are used both in assembly and in mass production by means of linear guide systems can be used.
  2. Steel (400N/mm²) capacity: 1mm
    Stainless steel (600N/mm²) capacity: 0.7mm
    Stainless steel (800N/mm²) capacity: 0.4mm
    Aluminium (250N/mm²) capacity: 1.5mm
    Lead capacity: 3mm
    Tightest radius: 50mm
    Working speed: 9m per min
    Strokes: 3900 per min
    Motor capacity: 300 watts
    Voltage: 110V
    Weight: 1.6kg
