Standing Seam Sliding Clip (500nr)

Standing Seam Sliding Clip (500nr)

(Code: RSC-25)
For 25mm standing seam.
Seam Height :
£ 93.83
8750
Add to cart

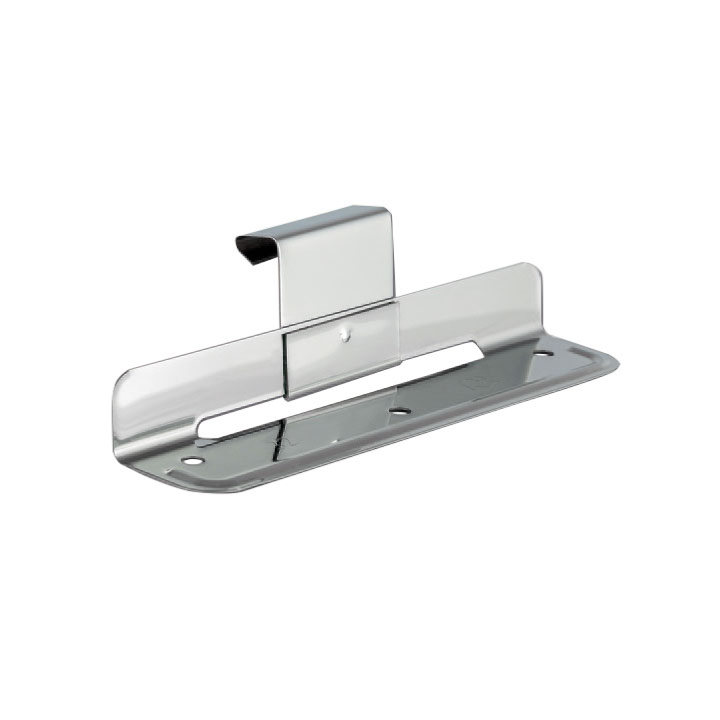

  1. Sliding clip for angle and double standing seam, for attaching on the pre-profiled standing seam.

    The base and sliding part are pre-assembled.

    Size, measurements and material thickness are according to the expert regulations of the German plumping crafts.

    One of many features is that the clips are easy to install. The base also comes with beading and rounded edges. It is most important to mount the clips accurately. Rework protruding nails or screws to avoid the damaging the roof layer. Due to the special shaping of the sliding part, a slight clamp-effect is achieved. The result is that the sliding part will not move during the installation process.

    Due to a sliding area of 55mm, these clips are suitable for the following sheet lengths:
    • 12 metres for titanium-zinc
    • 14 metres for copper
    • 16 metres for stainless steel
    • 16 metres for zinc coated steel sheet
    • 11 metres for aluminium
    • Seam height: 25mm
    • Thickness: 0.4mm
    • Material: Stainless steel V2A
    • Quantity: 500nr

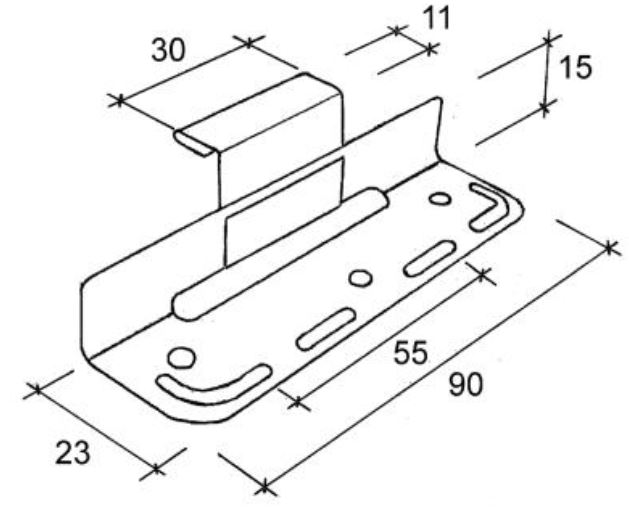

    • Dimensions:
