TurboShear A2
TurboShear A2TurboShear A2

TurboShear A2

Malco
(Code: Malco-TSA2)

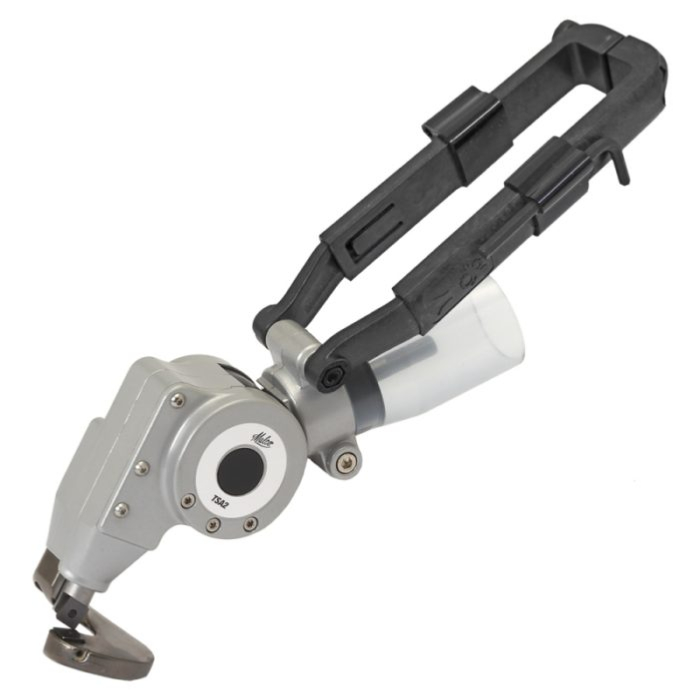

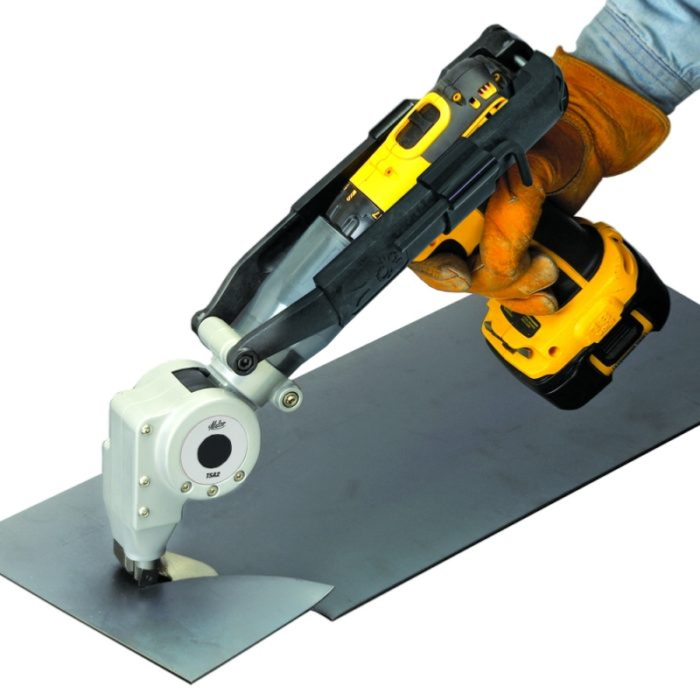

Heavy duty power shear that clamps to the drill body for one-handed operation.
£ 268.30
1360
Add to cart
  1. Step up to heavy-duty metal-cutting performance with a 1.52mm capacity TurboShear from Malco. This drill attachment makes a power drill a powerful metal-cutting shear, instantly! Clearance between the shear’s cutting inserts may be adjusted for optimal performance within a range of 1.52mm to 0.46mm mild steel. A helical (spiral) shaped foot permits easy left, right or straight cutting action. And a 5-position 0 to 90 degree (0, 22.5, 45, 67.5 and 90) adjustable head angle makes this TurboShear exceptionally maneuverable for cuts through profiles and into tight spaces.

    This is also an ideal accessory for cordless drills and features an aluminum shear head and telescoping drill clamp for sure one-handed control. The aluminum cast head also offers an additional safe gripping area when needed. The compact molded polymer clamp ensures operational ease by adjusting for both length and width of any drill housing, including smaller bodied lithium-ion battery powered units.

    Long-life, 4-sided, carbon steel cutting inserts are designed to be periodically rotated together to maximise service life before replacement. Insert cutting life is rated at 365m at a minimum, in maximum capacity 1.52mm steel using all four edges of the cutting inserts. Cutting life of inserts increases dramatically when averaged over cutting applications in a variety of steel thicknesses from 1.52mm to 0.46mm. Cutting inserts are accessible without disassembly of the shear head. Casings and are easily replaced on the job.

    Summary
    • Comes completely assembled and ready for service.
    • Adjustable cutting clearance. Clearance between the shear’s cutting inserts may be adjusted for optimal performance within a range of 16 to 1.52mm to 0.46mm mild grade steel.
    • Cuts any pattern. A helical (spiral) shaped foot permits easy left, right or straight cutting action.
    • Adjustable head. A 5-position 0 to 90 degrees (0, 22.5, 45, 67.5 and 90) adjustable head angle makes these TurboShears exceptionally maneuverable for cuts through profiles and into tight spaces.
    • Long-life, 4-sided, cutting inserts. Inserts are designed to be periodically rotated together to maximize service life before replacement. Cutting inserts are accessible without disassembly of the shear head.
    • Galvanised steel capacity: 1.63mm
    • Cold rolled capacity: 1.52mm
    • Drill requirements: Minimum 14.4 Volt Cordless/Maximum 7 Amp A/C
    • Head angle adjustments: 0, 22.5, 45, 67.5, 90 Degrees
    • Weight: 1.5kg
