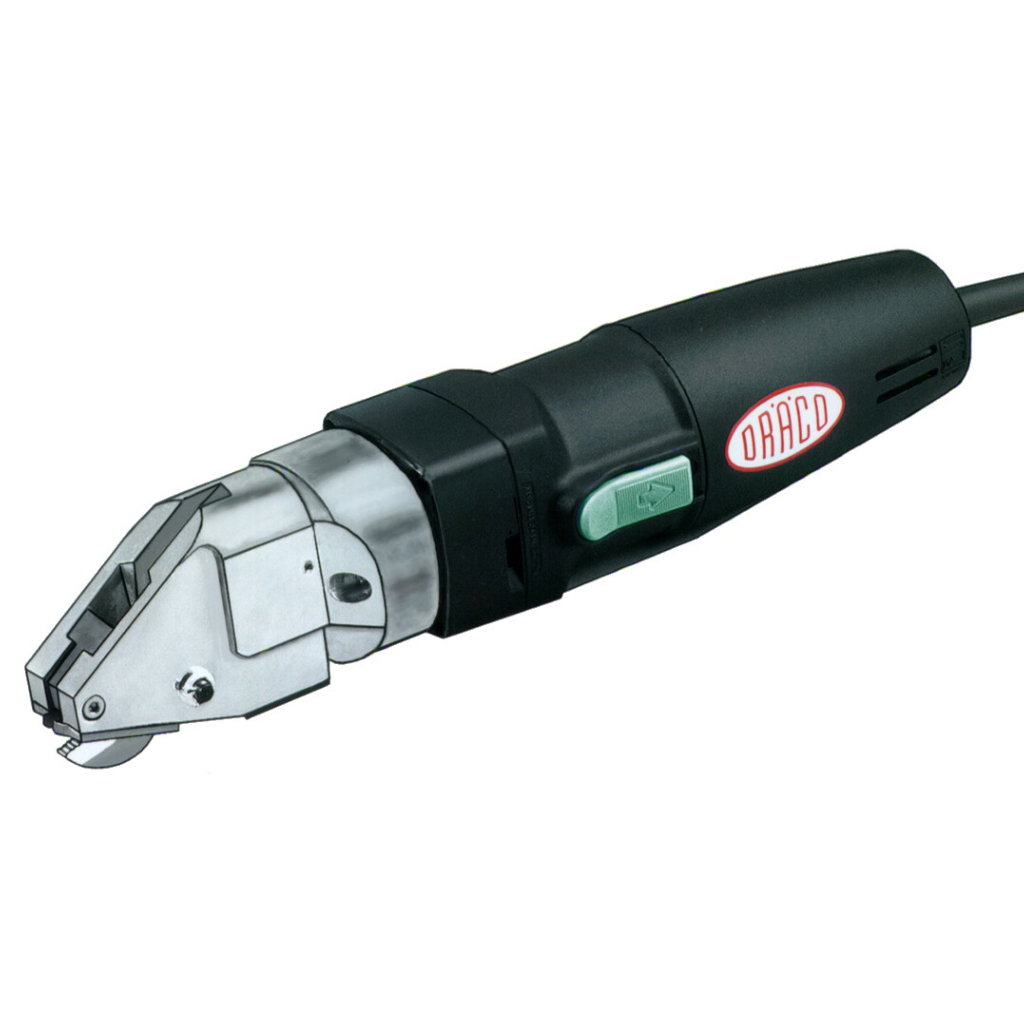

3514-7R Radius Shear
3514-7R Radius Shear3514-7R Radius Shear

3514-7R Radius Shear

Draco
(Code: DRA-61080-1GB)
Available to Order
Delivery in approx 7 days

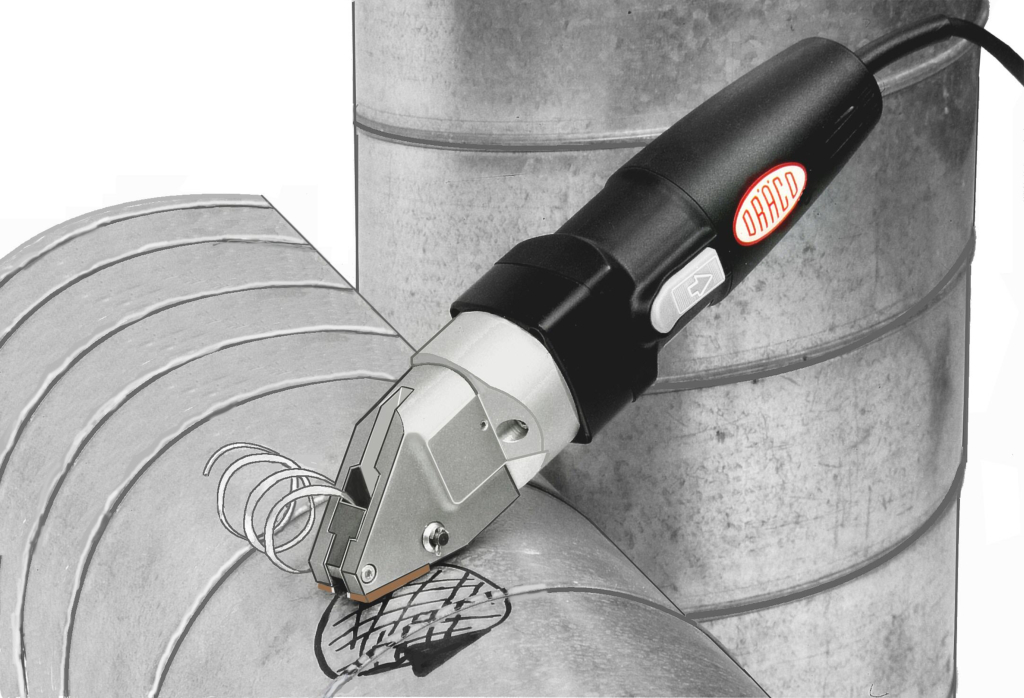

Cuts straight and tight radii in sheets, as well as over seams.
2000

  1. Cuts straight and tight radii in sheets, as well as over seams.

    Up to 2.0mm, or 4 x 0.75mm steel

    • Cold cutting without flying sparks!
    • Ideal for cutting recesses in spiral ducts and sheets.
    • Cuts straight and tight radii in sheets as well as seams.
    • Ideal for air and climate technology, installation companies, truck workshops, metalworking companies etc, round holes in (spiro) tubes, connections in (spiro) tubes, splitting of (spiro) tubes etc.

    • Steel (400N/mm˛) capacity: 2mm
    • Stainless steel (600N/mm˛) capacity: 1.5mm
    • Stainless steel (800N/mm˛) capacity: 1.3mm
    • Aluminium (250N/mm˛) capacity: 3mm
    • Lead capacity: 4mm
    • Spiral duct (400N/mm˛): 4 x 0.75mm
    • Duct & Pittsburgh Seam (400N/mm˛): 4 x 0.75mm
    • Double lock seam (250N/mm˛): 6 x 0.75mm
    • Tightest radius: 45mm
    • Working speed: 5-7m per min
    • Strokes: 2400 per min
    • Motor capacity: 500 watts
    • Voltage: 115V
    • Weight: 2kg
