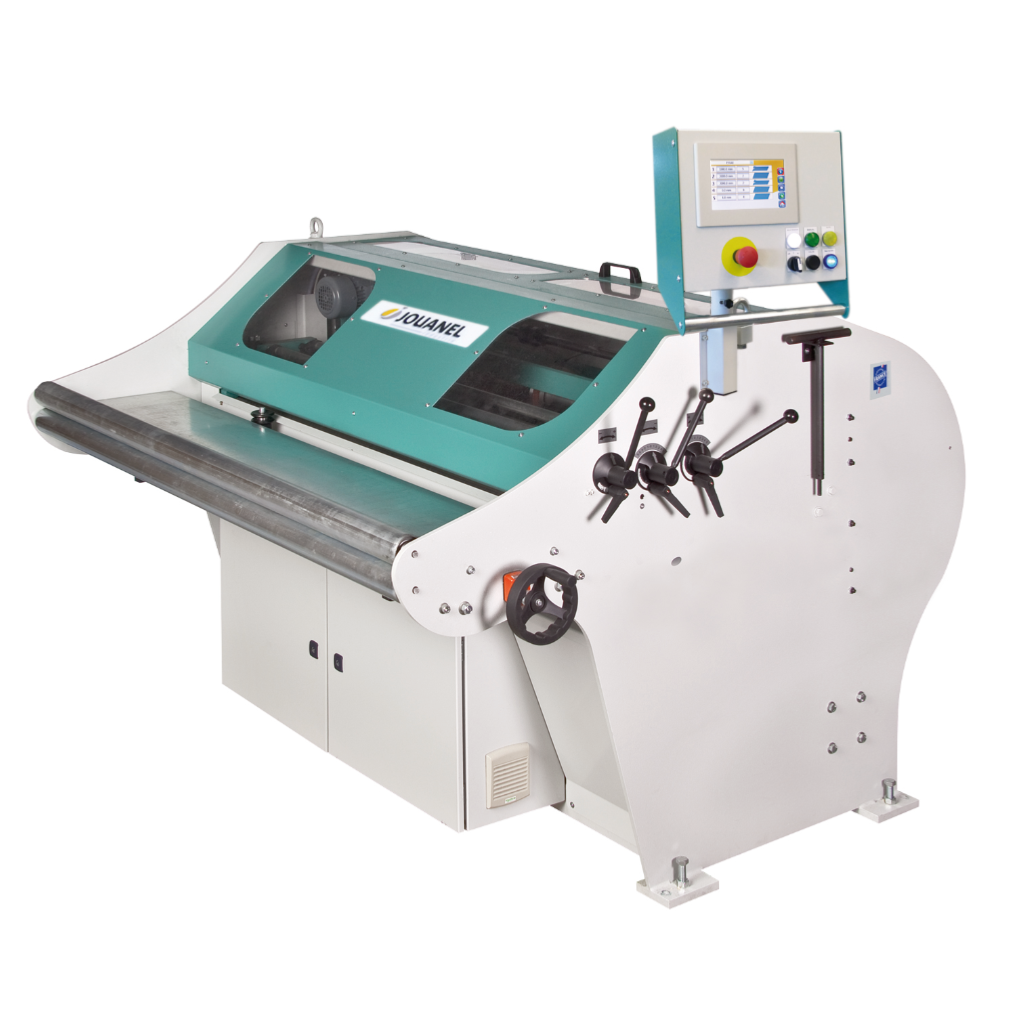

Cutting and slitting line, 1.25m x 1mm, 3 set of blades, CNC

Cutting and slitting line, 1.25m x 1mm, 3 set of blades, CNC

Jouanel
(Code: JOU-MLC1250)
Available at Supplier

Compact cutting line, reference MLC1250, 1,25m useful working width, 1.2mm steel shearing capacity, 1,0mm steel slitting capacity, equipped with a numerical control, for feeding, slitting and length cut.

Machine type :
1200000

    1. Compact cutting line, reference MLC1250, 1,25m useful working width, 1.2mm steel shearing capacity, 1,0mm steel slitting capacity, equipped with a numerical control, for feeding, slitting and length cut.)

    • Entry table with rollers including adjustable guides by lever with counter, 1,25m maximum width
    • Motorized feeding station (1 steel roller + 1 rubber-coated roller Ø 80mm)
    • Slitting station with ground shafts Ø 100mm, equipped with 3 sets of adjustable cutter blades Ø 154mm with reading on tool - Manual shaft adjustment by wheel and counter
    • Minimum cutting width: 80mm between cutter blades, 10mm at edge
    • Set of reversing cutter blades mounted on one-piece blade-carrying blocks
    • Maximum uncoiling speed: 20 m/mn
    • Weight (kg) 1200
    • Dimensions (mm) 1450 x 1600 x 1900
    • Power of motors Feeding/Straightening (kW) 1.5
    • Power Shearing unit (kW) 1.1
    • Power supply (V) 230V
    • Capacity Steel Shearing (mm) 1.2
    • Capacity Steel Slitting with 3 cutter blades (mm) 1
