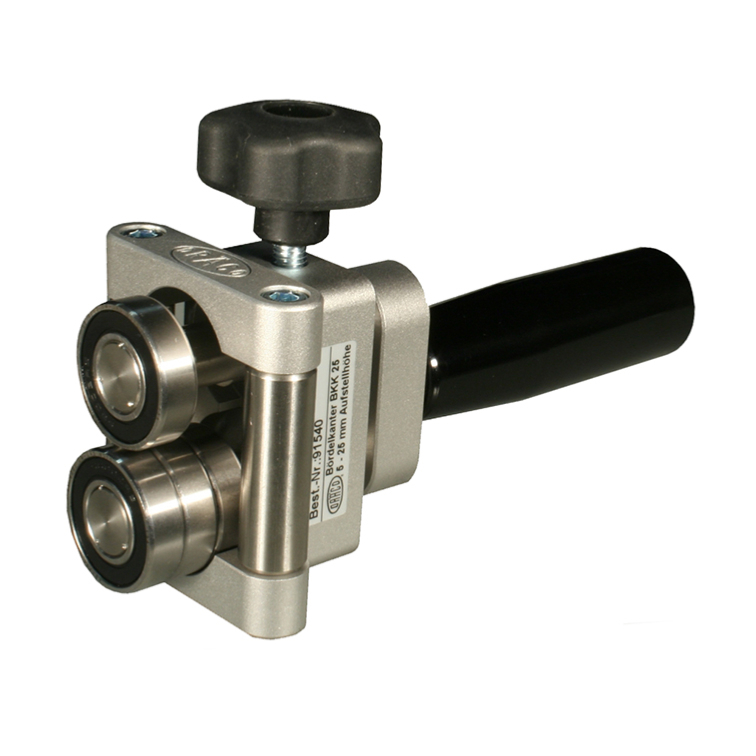

Flange & Curve Bender

Draco
(Code: Draco-91540)
Bends from 0° - 90°

When standard benders give up, the handy little flange and curve bender is needed. Ideal for curved work pieces and tight radii.
Bending Height :
£187.00
800
  1. Bends from 0° - 90°, bending height 5 - 25mm

    When standard benders give up, the handy little flange and curve bender BKK 25 is needed. Ideal for curved work pieces and tight radii.

    Bending from 0º to 90º, straight, concave and convex. Light and handy. Especially for producing tight radii (inner and outer radii!). Bending height is continously adjustable (scale in mm & inch). Smallest inside radius at min. bending height is 40 mm (1,57"). The BKK is the ideal supplement to the Dräco Eco-Bender 3.

    How does it work?

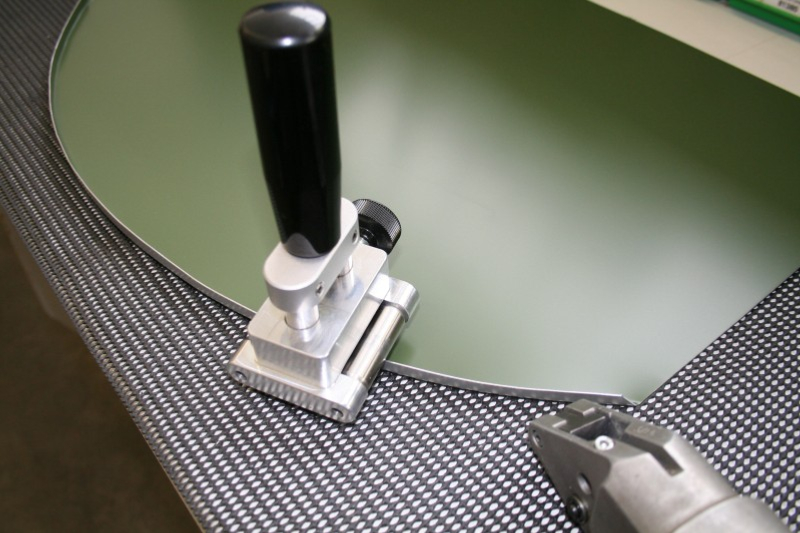

    Very easy. Just adjust to the requested height by using the integrated measuring device and lock it with the setscrew. Now put sheet metal between bending rolls with the single bearing on top. Move BKK forward and backwards by moving slightly to the top until desired angle is reached.

    Dräco’s tip:  When going trough the sheet metal, please go all the way down (till the end) and also all the way back (till the beginning) to create the best result.

  2. Zinc, copper aluminium capacity: 1mm
    Bends from - to: 5 - 25mm
    Bending angle: up to 90°
    Weight: 0.8kg
