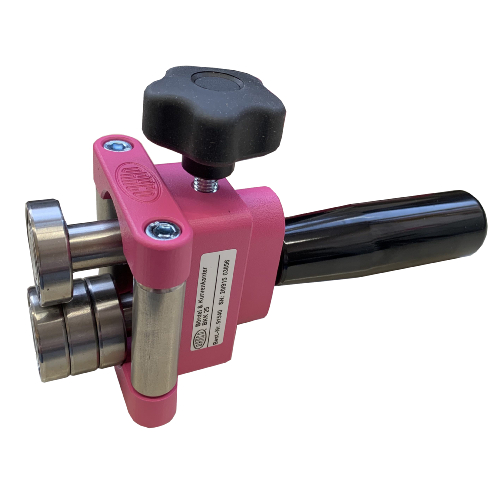

Flange & Curve Bender Pink Edition

Draco
(Code: Draco-915404003)
Be the envy of all the lads on site with the new Pink Edition!

£ 230.00
£ 207.00
-10.00%
800
  1. Be the envy of all the lads on site with the Flange & Curve Bender Pink Edition! The striking "heather violet" colour will ensure you'll stand out among the rest, as well as making the tool easier to find on the construction site and in the workshop.

    • This handy little bender is ideal for curved work pieces and tight radii.
    • Bends from 0º to 90º, straight, concave and convex.
    • Light and handy.
    • Especially for producing tight radii (inner and outer radii!).
    • Bending height is continuously adjustable from 5mm to 25mm (scale in mm & inch).
    • Smallest inside radius at minimum bending height is 40mm.

    The Flange & Curve Bender BKK is the ideal supplement to the Draco Eco-Bender 3.

    How does it work?
    Very easy. Just adjust to the requested height by using the integrated measuring device and lock it with the set screw. Now put sheet metal between bending rolls with the single bearing on top. Move bender forward and backwards by moving slightly to the top until desired angle is reached.

    Tip from Draco: When going through the sheet metal, please go all the way down (until the end) and also all the way back (to the beginning) to create the best result.
    • Zinc, copper aluminium capacity: 1mm
    • Bends from - to: 5 - 25mm
    • Bending angle: up to 90°
    • Weight: 0.8kg
