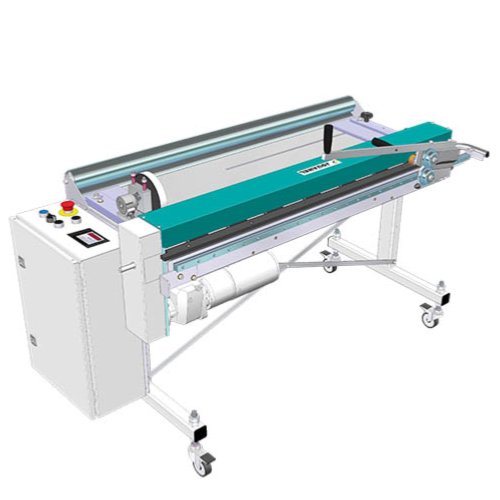

Jouanel Cutting unit 1,25M x 0,7 mm, electric uncoiling, manual cutting

Jouanel Cutting unit 1,25M x 0,7 mm, electric uncoiling, manual cutting

Jouanel
(Code: JOU-CLD-AE)
Available at Supplier

Light semi-electric cutting line, reference CLD-AE, useful cutting width 1.25m, 0.7mm steel capacity, electric uncoiling, length measurement, manual cut by integrated roller shear.

Blades :
210000

    1. Light semi-electric cutting line, reference CLD-AE, useful cutting width 1.25m, 0.7mm steel capacity, electric uncoiling, length measurement, manual cut by integrated roller shear

    • Electric uncoiling
    • Speed 9m / mn
    • Electronic length programmer, accuracy +/- 15 mm
    • Drive by rubber rollers
    • Adjustable entry guides from 500 to 1250mm, on slides and locking handles
    • Mount adapts to coils with a minimum width of 250 mm
    • Guiding of the metal sheet on ball bearings
    • Free roller at the entrance to guide the metal sheet in height
    • Entry table with nylon protection
    • Sheet clamping system with reverse-lock device of the coil
    • 4 caster wheels with brakes
    2. Maximum Cutting Capacity
    • Soft Steel capacity (mm)0,7
    • Capacity Zinc, Copper, 1050-H44 Aluminum (mm)0,8
    • Capacity Stainless Steel (mm)0,5

      • Upcoiling
    • Minimum width of the coil (mm)250
    • Maximum width of the coil (mm) 1 250

      • Dimensions
    • Operating dimensions (mm)1 800 x 800 x 1 110
    • Operating Dimensions: 2550mm x 1600mm x 1300mm
    • Net weight (kg)140
    • Gross weight (kg) 210
