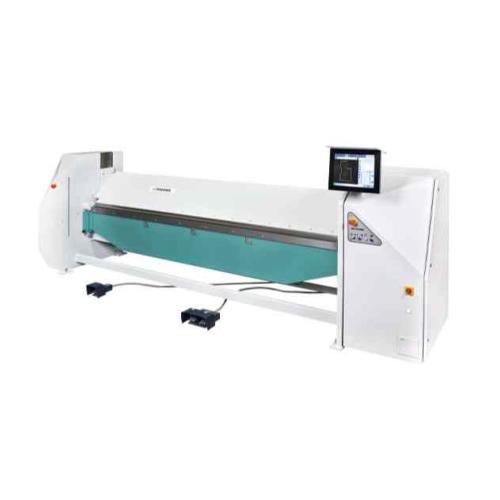

Jouanel PTS2100 Workshop Folding Machine 2m x 4mm

Jouanel PTS2100 Workshop Folding Machine 2m x 4mm

Jouanel
(Code: JOU-PTS2100)
Available at Supplier
Universal electric folding machine for workshop, reference PTS2100-40, useful folding length 2m, 5.0mm 1050-H44 aluminium capacity - 4.0mm 400N/mm˛ steel capacity (capacities with 25mm folding beam tool), control by pedal and 2 interchangeable 15mm and 25mm folding beam tools supplied.
Jouanel PTS Model :
301000
  1. Universal electric folding machine for workshop, reference PTS2100-40, useful folding length 2m, 5.0mm 1050-H44 aluminium capacity - 4.0mm 400N/mm˛ steel capacity (capacities with 25mm folding beam tool), control by pedal and 2 interchangeable 15mm and 25mm folding beam tools supplied.

    • Supply of 2 interchangeable 15 and 25mm folding beam tools
    • Interchangeable clamping beam tool at 20° making easy the production of U profiles
    • Folding beam crowning device
    • Folding radius adjustment
    • Repeatability and accuracy
    • Double motorization of clamp and folding beam providing a very good power when folding and plating
    • Folding quality even for fine thicknesses
    • Two types of numerical controls available (see complementary equipment)
    • Model also available with a segmented clamping beam
    • Useful folding length (mm) 2100
    • Capacity steel 400N/mm˛ (mm) with folding beam 25mm 4.0
    • Capacity steel 400N/mm˛ (mm) with folding beam 15mm 2.0
    • Capacity 1050-H44 aluminum (mm) with folding beam 25mm 5.0
    • Capacity 1050-H44 aluminum (mm) with folding beam 15mm 3.0
    • Capacity galvanized steel (mm) with folding beam 25mm 3.2
    • Capacity galvanized steel (mm) with folding beam 15mm 1.6
    • Capacity stainless steel 304L (mm) with folding beam 25mm 2.7
    • Capacity stainless steel 304L (mm) with folding beam 15mm 1.3
    • Table height (mm) 830
    • Clamping beam tool angle 20°
    • Clamp opening (mm) 130
    • Folding speed (°/s) 60
    • Clamping speed without safety light curtains (mm/s) 10
    • Clamping speed with safety light curtains (mm/s) 40
    • Power supply (V)*
    • 400 V three-ph + neutral + earth
    • Total power (kW) 9
    • Dimensions without back gauge (mm) 3600 x 1005 x 1900
    • Dimensions with electric back gauge and CNC options (mm) 3600 x 2100 x 1900
    • Gross weight (kg) without electric back gauge 3300
    • * Electrical voltage to be specified upon order
    • 90° bending capacities / Minimum fold width: 15 times the thickness
    • Clamp flattening = 1/3 of max. thickness capacity
