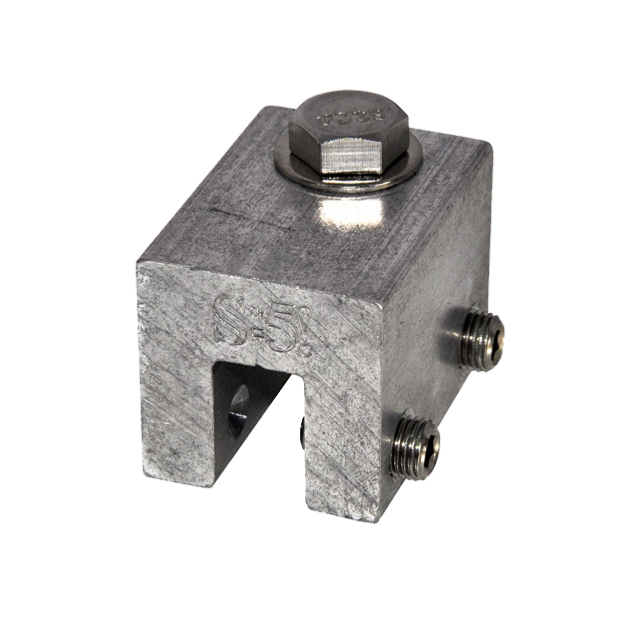

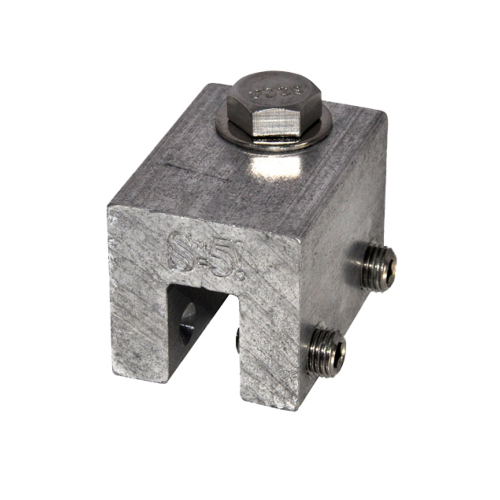

S-5-S Clamp

S-5!
(Code: S5-S)
Versatile clamp for snaplock seam systems.
£ 8.58
182
  1. Seeking a Versatile Mounting Solution for Popular Snap-Lock Profiles?

    The S-5-S ("S” stands for snap-lock) is a non-penetrating, standing seam metal roof (SSMR) clamp. The S is designed for most popular vertical snap-together profiles - typically with vertical dimensions of 38mm and 44mm.

    The S is also the perfect solution for traditional, single-fold (angle-seam) horizontal profiles of 25mm and 38mm seam height dimensions and all similar seam types.

    Choose the S (or its Mini) to mount walkways, snow guards, solar panels and other mechanical equipment to snap-lock and some single-fold metal roof profiles. Although the S-5-U will work on these profiles, the S is a better fit and lower-cost solution.

    Product Specifications
    • Use on vertical snap-together profiles.
    • Use on single-folded with horizontal projection ≤ 13mm.
    • Use for heavy-duty applications, such as snow retention.
    • Two T-30 Torx round-point setscrews (Torx bit tip provided).
    • One M8 bolt included.
    • Also available in stainless - contact us for pricing.

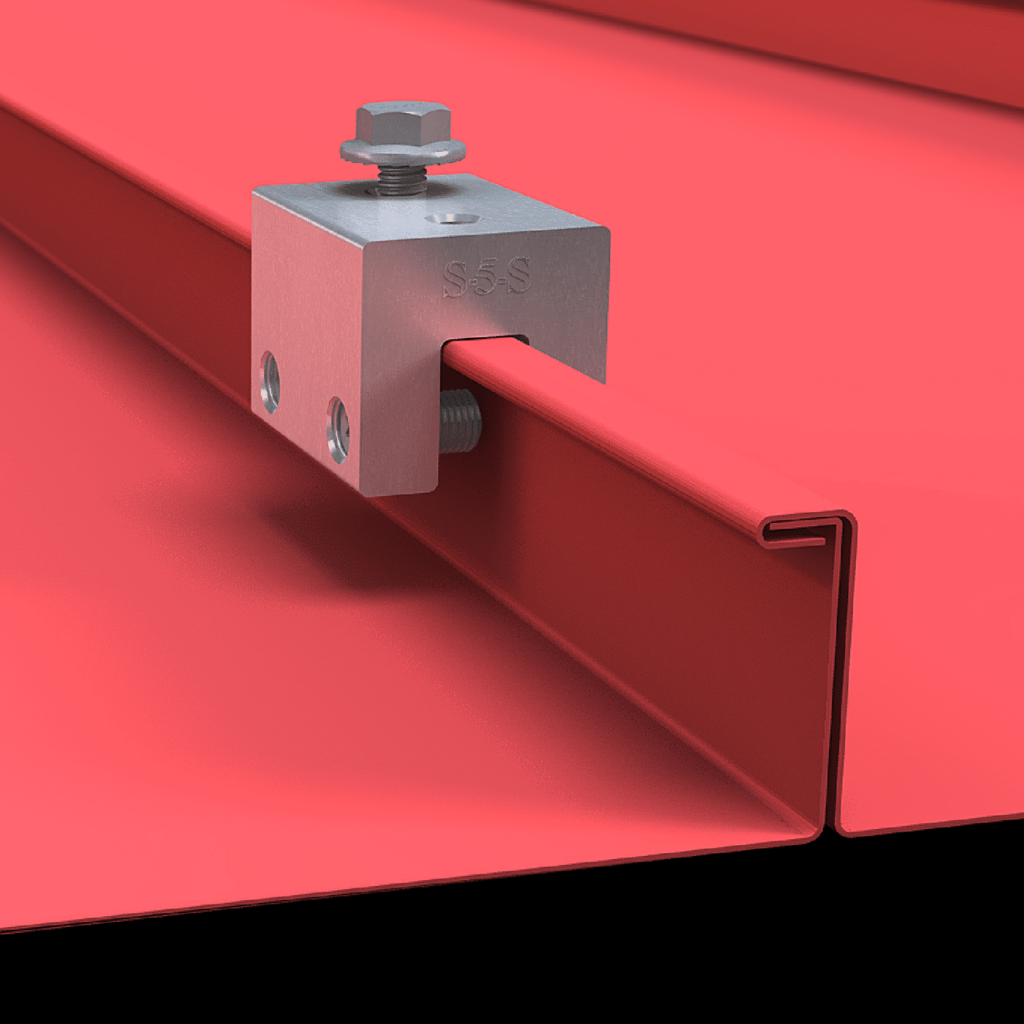

    Does the S-5-S Fit Your Roof Profile?


    How to Install the S-5-S Clamp on Your Roof Profile
    Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

    *See more detailed installation instructions in the downloads tab.

    Minis Available
    The S-5-S Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required.

    All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.
    • Weight: 0.182kg

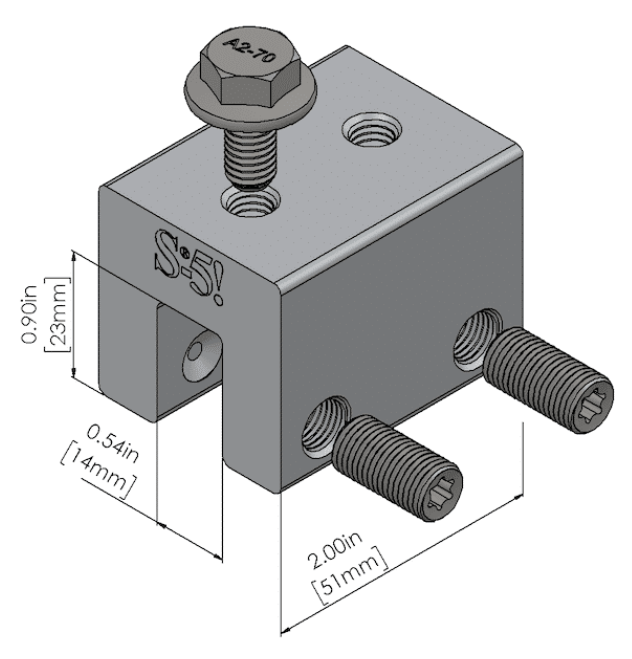

    • Dimensions:
