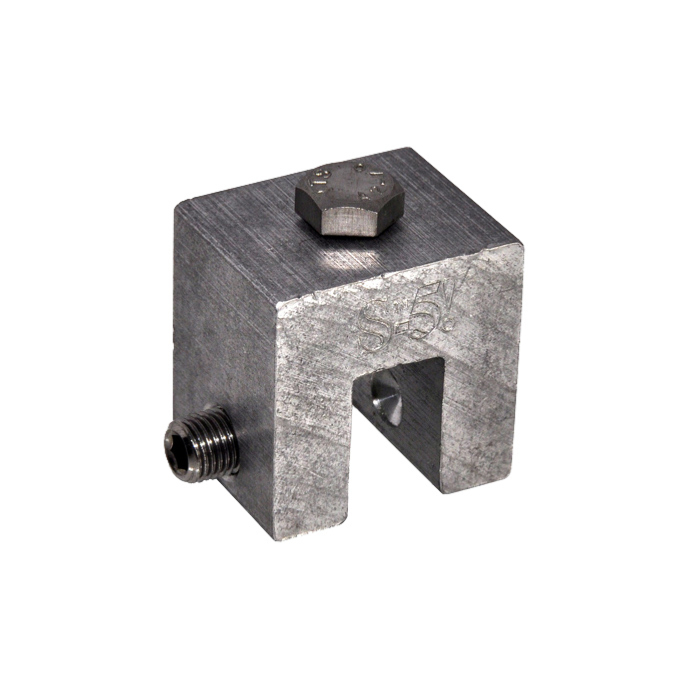

S-5-S Mini Clamp ( NO BOLT )

Shopping Satisfaction
(Code: S5-SMINI-NB)
Smaller than the standard S-5-S. For lighter duty attachments.

£ 4.62
  1. Seeking a Versatile Mounting Solution for Popular Snap-Lock Profiles? The S-5-S ("S” stands for snap-lock) is a non-penetrating, standing seam metal roof (SSMR) clamp. The S is designed for most popular vertical snap-together profiles - typically with vertical dimensions of 38mm and 44mm.

    The S is also the perfect solution for traditional, single-fold (angle-seam) horizontal profiles of 25mm and 38mm seam height dimensions and all similar seam types.

    Choose the S-5-S or S-5-S Mini to mount walkways, snow guards, solar panels and other mechanical equipment to snap-lock and some single-fold metal roof profiles. Although the S-5-U will work on these profiles, the S is a better fit and lower-cost solution.

    The S-5-S Mini clamp is a more economical solution for lighter duty attachments where Herculean holding strength is not required. It is a bit shorter than the standard S-5-S clamp with one setscrew rather than two.

    All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

    S-5-S Mini Specifications
    • Use on vertical snap-together profiles.
    • Use on single-folded with horizontal projection (horizontal seams) under ≤ 13mm.
    • Utility mounting and other light and medium-duty applications.
    • Smaller than the standard S-5-S.
    • One T-30 Torx round-point setscrew.
    • M8 bolt sold separately.
    • Also available in stainless - contact for pricing.

    Does the S-5-S Fit Your Roof Profile?

    How to Install the S-5-S Mini Clamp on Your Roof Profile
    Installation is as simple as placing the clamp on the seam and tightening the round point Torx Drive (T30) setscrew to the specified tension. Then, affix ancillary items using the M8 bolt sold separately.

    *See more detailed installation instructions in the downloads tab.
    • Weight: 0.11kg

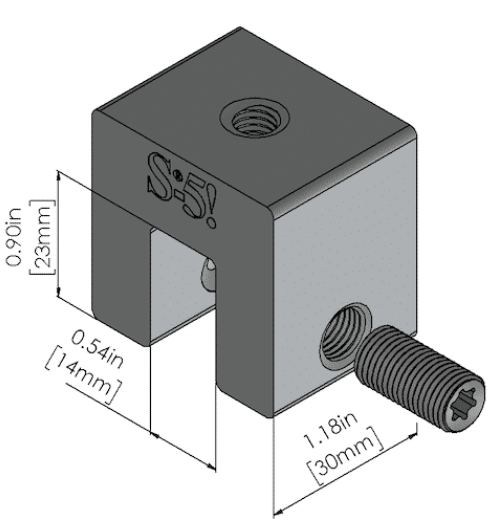

    • Dimensions:
  2. #Downloads#
