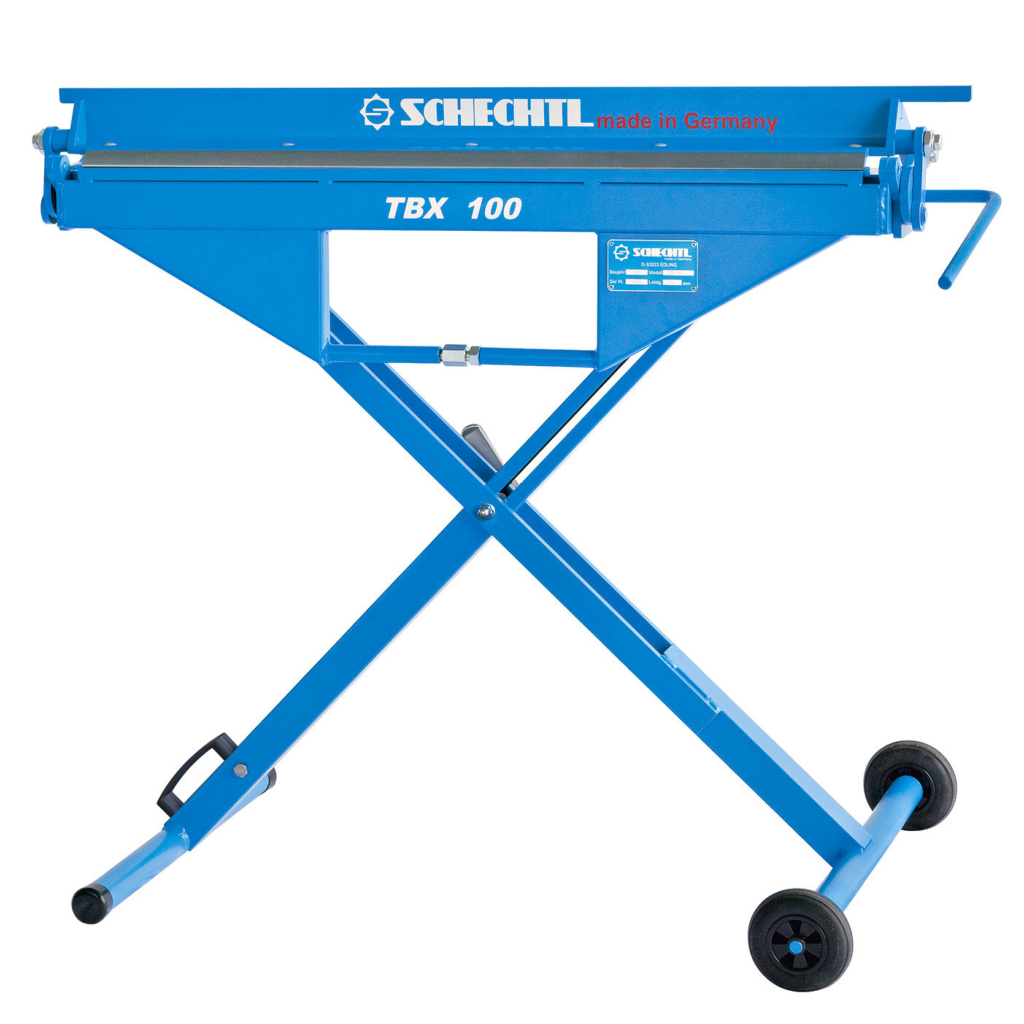

TBX 100 Portable Folding Machine

(Code: Schechtl-TBX100)
Lightweight, durable, folding machine complete with roller shear.
£ 2,995.00
100000
  1. Lightweight, durable, folding machine complete with roller shear.

    Benefits
    • Lightweight for the job site, can be carried by one worker.
    • Can be installed on a workbench or in a construction vehicle (without X-shaped support stand).
    • Durable steel construction – optimally suited for everyday work at the job site.
    • Clamping pressure adjustable - good, uniform bending throughout the entire working length.
    • Ideal for frequently changing job sites, work on upper floors and on ceilings/scaffolding.

    Features
    • Complete with:
      • Roller shear.
      • Foldable X-shaped support stand with wheels and handle.
      • 1 clamping beam rail 45°, radius 1 mm (non-exchangeable).
    • Bending beam with manual crowing system – always the right pretension for the material and material thickness.
    • Wear-free and maintenance-free roller bearings.

    Optional Accessories (contact us)
    • Foot stands.
    • Beading roller.
    • Rolling rod in Ř 14mm, 16mm, 18mm or 20mm.
    • Tap wrench in 12mm (crank to turn the rolling rod).
    • Working length: 1000mm
    • Steel 400N/mm˛ capacity: 0.80mm
    • Aluminum 250N/mm˛ capacity: 1.00mm
    • Stainless steel 600N/mm˛ capacity: 0.50mm
    • Copper 300N/mm˛ capacity: 1.00mm
    • Zinc 150N/mm˛ capacity: 1.00mm
    • Clamping beam opening height: 45mm
    • Length: 1,240mm
    • Depth: 700mm
    • Total height with X-shaped support stand: 1,150mm
    • Weight (TBX machine without X-shaped support stand): 38kg
    • Weight (X-shaped support stand): 17kg
