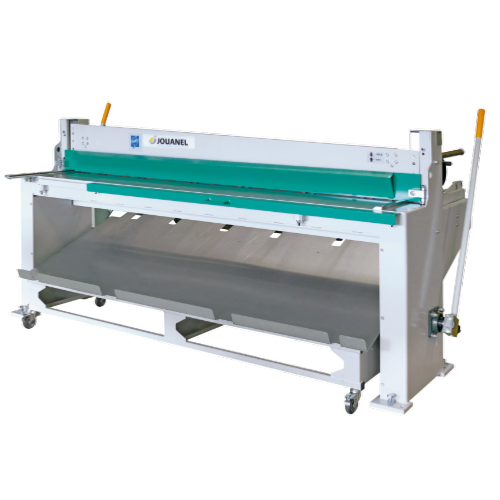

Workshop manual guillotine shears CGM 2550mm x 1mm

Workshop manual guillotine shears CGM 2550mm x 1mm

Jouanel
(Code: JOU-CGM2550)
Available at Supplier

Manual shear 2550 x 1mm; back gauge 12-750mm with side control included.

692000

    1. Manual guillotine shear with side levers for workshop, reference CGM2550, useful cutting length 2,50m, 1,0mm steel capacity, with rack-operated manual back gauge included. Model available with belt-type back gauge with control at the front of the machine (optional)

    • 300mm wide and 800mm high front table, grooved every 10mm to cut easily without bearing on gauge
    • Retractable front table + 480mm for large formats
    • Retractable back metal sheet support 120mm (plate option excluded)
    • Right-hand 500mm and left-hand 300mm graduated square gauge
    • Rack-operated back gauge with right-hand side control by wheel and digital display of positioning
    • Automatic sheet clamping system
    • One-piece blades are reversible once
    • Useful cutting length 2550mm
    • Steel Capacity: 0.4mm-1.0mm
    • Zinc and Copper Capacity: 0.4mm-1.2mm
    • Stainless steel Capacity: 0.4mm-0.6mm
    • Aluminium Capacity: 0.4mm-1.2mm
    • Table Height: 800mm
    • Operating Dimensions: 3050mm x 1600mm x 1300mm
    • Net Weight: 692kg
