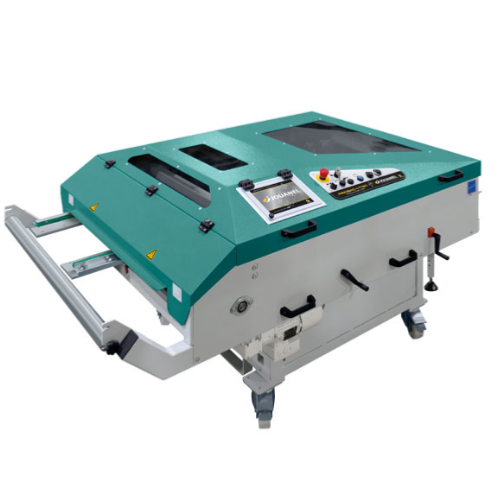

Workshop standing seam roll-forming machine PROBAC-HTEC

Workshop standing seam roll-forming machine PROBAC-HTEC

Jouanel
(Code: JOU-PROBAC-HTEC)
Available at Supplier

Electric roll forming machine for standing seam with CNC, Slitting and electric transversal cutting.

595000

    1. Electric roll-forming machine for workshop, reference PROBAC-HTEC for the production of standing seam profiles in parallel or conical trays. Check of the machine by latest evolution of digital control with 10'' touch screen. Full or partial electric transversal cut and automatic cycle to produce several trays without intervention, longitudinal cut with or without roll-forming, tool-free, quick-adjusting entry guide system. Automatic calculation of the number and trays dimension according to roof layout.

    • Numerical control on 10’’ colour touch screen with protective cover
    • Integrated in-feeding process
    • Entry guide on « roller slide » to avoid marking the sheets
    • Longitudinal cut with or without roll forming
    • Full or partial transversal electric cutting
    • Variable speed drive
    • Tool-free quick adjustment of the entry guide and the slitting knife
    • Adjustment of the strip and covering width
    • Position adjustments of the left and right profiling roll sets by handwheel
    • 8 larger set rolls diameters
    • Braked wheels and handles for moving the machine
    • Handling space for forks
    • Useful cutting length 2050mm
    • Steel Capacity: 0.4mm-1.0mm
    • Zinc and Copper Capacity: 0.4mm-1.2mm
    • Stainless steel Capacity: 0.4mm-0.6mm
    • Aluminium Capacity: 0.4mm-1.2mm
    • Table Height: 800mm
    • Operating Dimensions: 2550mm x 1600mm x 1300mm
    • Net Weight: 595kg
