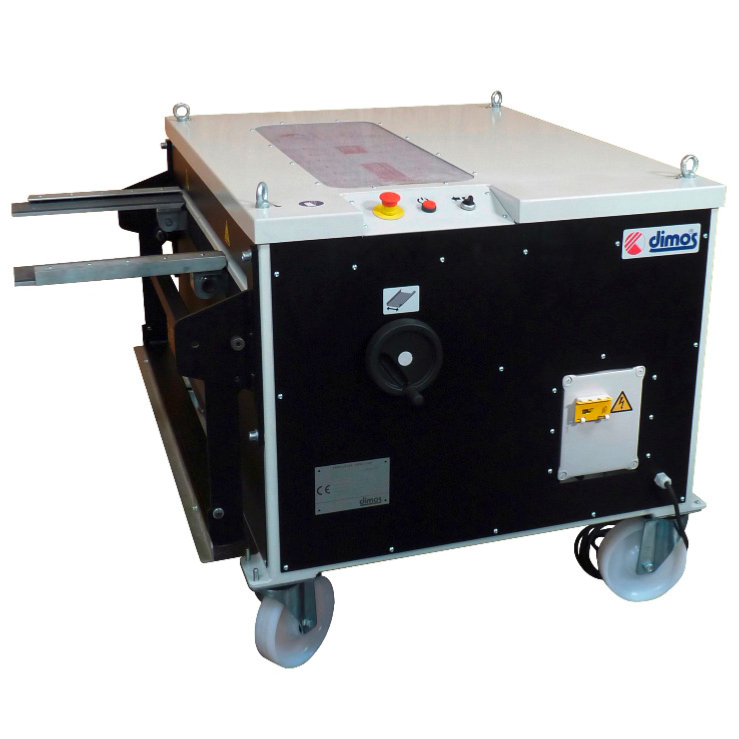

Dimos Dipro P5400 Profiler

(Code: Dimos-084750)

Profiling machine for standing seam system, suitable for all metals including coated metals.

£ 10,377.09
200000
  1. Profiling machine for standing seam system, suitable for all metals including coated metals (not currently available with lifting eyes).

    The Dimos Dipro P5400 is both automatic and cost-effective. With it's completely redesigned profiling train, this machine is the best possible compromise between usability and quality. It requires no adjustment and no tools.

    Features
    • Profiling train: Controlled bending pressure for guaranteed quality profiling using different materials.
    • Rugged construction (body frame, input guides, etc.).
    • Large-diameter profiling rollers.
    • Central support system: for supporting large-width sheets.
    • Adaptable profiling train for all metal types.
    • Width of 180mm possible in a single pass (ideal for cladding).
    • Easily accessible control panel.
    • Simplified controls: Control panel is equipped with only 3 buttons (emergency stop, power switch, front/rear).
    • Extra user protection thanks to bellows and a closed base.
    • Wheels are fitted with brakes to avoid any unwanted movement during use or transport
    • 2 types of wheels available: on-site or workshop (optional).
    • Special crossbars ensure stability when lifting and handling.
    • Copper capacity: 0.7mm
    • Zinc capacity: 0.8mm
    • Steel (400N/mm˛) capacity: 0.7 mm
    • Stainless steel (470N/mm˛) capacity: 0.5mm
    • Aluminium capacity: 0.8mm
    • Minimum strip length: 800mm
    • 1-pass sheet width: 250mm - 820mm
    • 2-pass sheet width: 160mm - 750mm
    • Length: 1500mm
    • Width: 1230mm
    • Height: 1050mm
    • Profiling speed: 15m/min (220V) 12m/min (110V)
    • Maximum noise emissions: 70 dB
    • Voltage 110v (220v available)
    • Weight: 350kg
