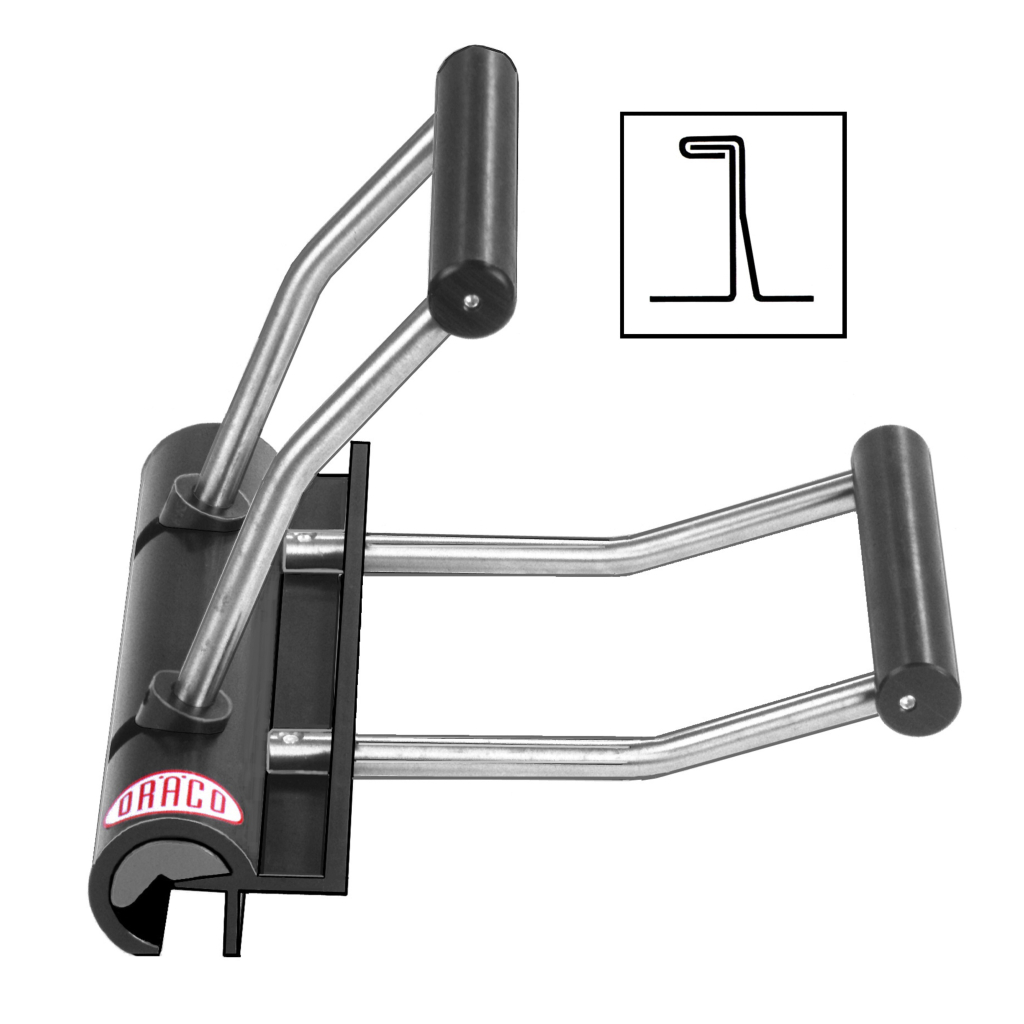

Single Lock Handseamer K8N

Draco
(Code: Draco-91530)
Closes the single lock standing seam. Ideal for start-up connections and hard-to-reach places.
£185.00
2100
  1. Closes the single lock standing seam. Ideal for start-up connections and hard-to-reach places so wherever one can not get in with the electric seaming machines and still want to work quickly.

    Easy and fast closing roofs and facades thanks to the DRACO profile in profile system. This unique hinge mechanism ensures an ideal power transfer over the entire locking length and guarantees a perfectly closed seam through the tight pressure.

    Sheet iron, aluminum, copper and zinc can be threaded to a thickness of 0.8 mm. In stainless steel the maximum thickness is 0.5 mm.

    - No scratch marks to coated or painted material.
    - Light in weight.
    - Ideal for strating or ending the seam.
    - Easy to use.
    - Minimal force required.
    - All parts are made from rust-free materials.
    - Anodised for hardness.

    Looking for a longer angle-blush? Then look at the K8NL. The K8NL has a closing length of 350 mm / stroke. Special lengths are also available on request.

  2. Stainless steel capacity: 0.5mm
    Aluminium, copper, zinc, steel capacity: 0.8mm
    Steel, Plasticol capacity: 0.8mm
    Length: 255mm
    Width: 260 - 430mm
    Closing length: 210mm
    Weight: 2.1kg
