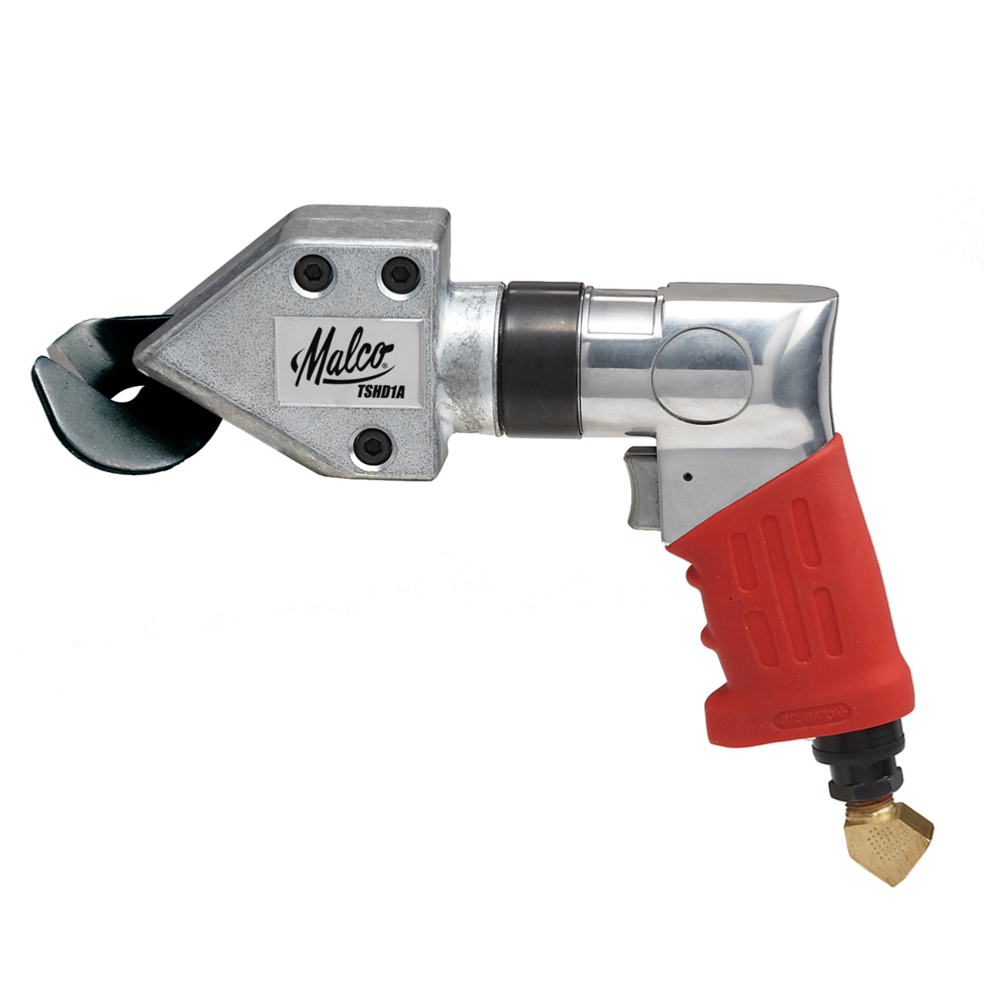

TurboShear HD1A

Malco
(Code: Malco-TSHD1A)
Air powered shear for unstoppable shearing power in heavy sheet metal!
£ 250.42
1670

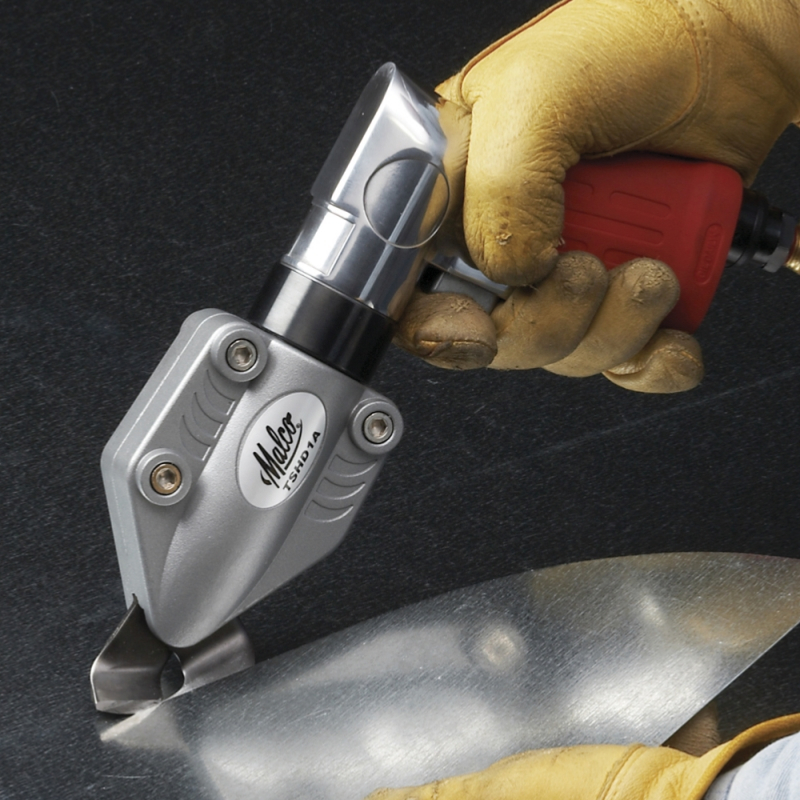

  1. Use Air Pressure for unstoppable shearing power in heavy sheet metal! Combined with Malco’s unique TurboShearHD design, the TSHD1A is the ultimate tool for those who want to make fast, easy cuts, any kind of cuts, in most common sheet metals. This versatile, compact pneumatic shear cuts straight and to the left and is capable of navigating profiles, tight patterns or square corners. Compatible with standard on-the-job or in-the-shop air supply set-ups. Long wearing blades are easily replaced on the job.

    Summary
    • Compatible with your existing air supply.
    • Great for straight shearing, tight patterns cuts, corner cuts, or navigating profiles.
    • Long lasting blades also easily replaceable.
    • Galvanised steel capacity: 1.32mm
    • Mild steel capacity: 1.22mm
    • Stainless steel capacity: 0.82mm
    • Aluminium capacity: 1.54mm
    • Copper capacity: 2.55mm
    • Weight: 2.2kg
  2. #FAQS#How clean is the cut?

    TSHD1A - The Turboshear metal cutting series will make clean cuts throughout the range of thicknesses of material listed above. The tool will need to be adjusted when going from very thin to thick material and vice versa.

    How do you adjust the tool to get the optimum cut?

    The clearance between the cutting jaws is adjustable in order to achieve the optimum cut for thick or thin material. To adjust, locate the 3/16” set screw on the back of the tool, towards the front of the tool near the jaws. Turn it clockwise to tighten the gap of the jaws for thinner material or counterclockwise to make the gap of the jaws larger for thicker material.
